WC S5000 Series Medium Duty Casters

  • Economy Stainless Series: Without seals, grease or zerk fittings
  • Great for high temperature & economy applications
  • 304 STAINLESS STEEL (All metal parts are made of Stainless Steel)
  • Highly resistant to conditions that would normally corrode and rust regular steel casters
  • Double ball raceways provide extra capacity & durability
  • Applications: Ideal for wet, damp conditions or other corrosive environments such as wash downs, restaurants, food processing plants, hospitals & other institutional applications, etc.

Swivel #
Replace ** with
Fastener Code		 Rigid#
Replace ** with
Fastener Code

3"
1-1/4"
 Solid Polyurethane Delrin 300 lbs.
3"
4"
 WCS5030-**-SPU WCS5030R-**-SPU
3"
1-1/4"
 Polyolefin Plain 300 lbs.
3"
4"
 WCS5030-**-HDP WCS5030R-**-HDP
3"
1-1/4"
 Polyolefin SS Ball 300 lbs.
3"
4"
 WCS5030-**-HDP-SB WCS5030R-**-HDP-SB
3"
1-1/4"
 Phenolic SS DSW 350 lbs.
3"
4"
 WCS5030-**-PHN WCS5030R-**-PHN
3"
1-1/4"
 Poly-U / Poly-O (Gray on Beige) Plain 250 lbs.
3"
4"
 WCS5030-**-PPPG WCS5030R-**-PPPG
3"
1-1/4"
 Poly-U / Poly-O (Gray on Beige) SS Ball 250 lbs.
3"
4"
 WCS5030-**-PPBG-SB WCS5030R-**-PPBG-SB
3"
1-1/4"
 Thermal Plastic Rubber Plain 210 lbs.
3"
4"
 WCS5030-**-TRP WCS5030R-**-TRP
3"
1-1/4"
 Thermal Plastic Rubber SS Ball 210 lbs.
3"
4"
 WCS5030-**-TRB-SB WCS5030R-**-TRB-SB
3"
1-1/4"
 Polyurethane on Aluminum Annular 350 lbs.
3"
4"
 WCS5030-**-PAL WCS5030R-**-PAL
3"
1-1/4"
 Rubber on Aluminum Annular 210 lbs.
3"
4"
 WCS5030-**-RAL WCS5030R-**-RAL
3"
1-1/4"
 Yoke Axle & Nut - 350 lbs.
3"
4"
 WCS5030-**-YAN WCS5030R-**-YAN

3-1/2"
1-1/4"
 Solid Polyurethane Delrin 350 lbs.
3-1/8"
4-5/8"
 WCS5035-**-SPU WCS5035R-**-SPU
3-1/2"
1-1/4"
 Polyolefin Plain 350 lbs.
3-1/8"
4-5/8"
 WCS5035-**-HDP WCS5035R-**-HDP
3-1/2"
1-1/4"
 Phenolic SS DSW 350 lbs.
3-1/8"
4-5/8"
 WCS5035-**-PHN WCS5035R-**-PHN
3-1/2"
1-1/4"
 Poly-U / Poly-O (Gray on Beige) Plain 250 lbs.
3-1/8"
4-5/8"
 WCS5035-**-PPPG WCS5035R-**-PPPG
3-1/2"
1-1/4"
 Poly-U / Poly-O (Gray on Beige) SS Ball 250 lbs.
3-1/8"
4-5/8"
 WCS5030-**-PPBG-SB WCS5030R-**-PPBG-SB
3-1/2"
1-1/4"
 Thermal Plastic Rubber Plain 225 lbs.
3-1/8"
4-5/8"
 WCS5035-**-TRP WCS5035R-**-TRP
3-1/2"
1-1/4"
 Thermal Plastic Rubber SS Ball 225 lbs.
3-1/8"
4-5/8"
 WCS5035-**-TRB-SB WCS5035R-**-TRB-SB
3-1/2"
1-1/4"
 Polyurethane on Aluminum Annular 350 lbs.
3-1/8"
4-5/8"
 WCS5035-**-PAL WCS5035R-**-PAL
3-1/2"
1-1/4"
 Rubber on Aluminum Annular 225 lbs.
3-1/8"
4-5/8"
 WCS5035-**-RAL WCS5035R-**-RAL
3-1/2"
1-1/4"
 Yoke Axle & Nut - 350 lbs.
3-1/8"
4-5/8"
 WCS5035-**-YAN WCS5035R-**-YAN

4"
1-1/4"
 Solid Polyurethane Delrin 350 lbs.
3-1/2"
5"
 WCS5040-**-SPU WCS5040R-**-SPU
4"
1-1/4"
 Polyolefin Plain 300 lbs.
3-1/2"
5"
 WCS5040-**-HDP WCS5040R-**-HDP
4"
1-1/4"
 High Temp Glass Filled Nylon SS Bushing 350 lbs.
3-1/2"
5"
 WCS5040-**-HTGFN-Z WCS5040R-**-HTGFN-Z
4"
1-1/4"
 High Temp Phenolic SS Bushing 350 lbs.
3-1/2"
5"
 WCS5040-**-HTPHN-Z WCS5040R-**-HTPHN-Z
4"
1-1/4"
 Phenolic SS DSW 350 lbs.
3-1/2"
5"
 WCS5040-**-PHN WCS5040R-**-PHN
4"
1-1/4"
 Poly-U / Poly-O (Gray on Beige) Plain 275 lbs.
3-1/2"
5"
 WCS5040-**-PPPG WCS5040R-**-PPPG
4"
1-1/4"
 Poly-U / Poly-O (Gray on Beige) SS Ball 275 lbs.
3-1/2"
5"
 WCS5040-**-PPBG-SB WCS5040R-**-PPBG-SB
4"
1-1/4"
 Thermal Plastic Rubber Plain 250 lbs.
3-1/2"
5"
 WCS5040-**-TRP WCS5040R-**-TRP
4"
1-1/4"
 Thermal Plastic Rubber SS Ball 250 lbs.
3-1/2"
5"
 WCS5040-**-TRB-SB WCS5040R-**-TRB-SB
4"
1-1/4"
 Polyurethane on Aluminum Annular 350 lbs.
3-1/2"
5"
 WCS5040-**-PAL WCS5040R-**-PAL
4"
1-1/4"
 Rubber on Aluminum Annular 250 lbs.
3-1/2"
5"
 WCS5040-**-RAL WCS5040R-**-RAL
4"
1-1/4"
 Yoke Axle & Nut - 350 lbs.
3-1/2"
5"
 WCS5040-**-YAN WCS5040R-**-YAN

5"
1-1/4"
 Solid Polyurethane Delrin 350 lbs.
4"
6-3/16"
 WCS5050-**-SPU WCS5050R-**-SPU
5"
1-1/4"
 Polyolefin Plain 325 lbs.
4"
6-3/16"
 WCS5050-**-HDP WCS5050R-**-HDP
5"
1-1/4"
 Phenolic SS DSW 350 lbs.
4"
6-3/16"
 WCS5050-**-PHN WCS5050R-**-PHN
5"
1-1/4"
 Poly-U / Poly-O (Gray on Beige) Plain 300 lbs.
4"
6-3/16"
 WCS5050-**-PPPG WCS5050R-**-PPPG
5"
1-1/4"
 Poly-U / Poly-O (Gray on Beige) SS Ball 300 lbs.
4"
6-3/16"
 WCS5050-**-PPBG-SB WCS5050R-**-PPBG-SB
5"
1-1/4"
 Thermal Plastic Rubber Plain 250 lbs.
4"
6-3/16"
 WCS5050-**-TRP WCS5050R-**-TRP
5"
1-1/4"
 Thermal Plastic Rubber SS Ball 250 lbs.
4"
6-3/16"
 WCS5050-**-TRB-SB WCS5050R-**-TRB-SB
5"
1-1/4"
 Round Thermal Plastic Rubber Graphite 250 lbs.
4"
6-3/16"
 WCS5050-**-RTPO WCS5050R-**-RTPO
5"
1-1/4"
 Polyurethane on Aluminum Annular 350 lbs.
4"
6-3/16"
 WC5050-**-PAL WC5050R-**-PAL
5"
1-1/4"
 Rubber on Aluminum Annular 250 lbs.
4"
6-3/16"
 WC5050-**-RAL WC5060R-**-RAL
5"
1-1/4"
 Yoke Axle & Nut - 350 lbs.
4"
6-3/16"
 WCS5050-**-YAN WCS5050R-**-YAN

6"
1-1/4"
 Solid Polyurethane Delrin 350 lbs.
4-1/2"
7-3/8"
 WCS5060-**-SPU WCS5060R-**-SPU
6"
1-1/4"
 Poly-U / Poly-O (Gray on Beige) *Ball w/TG 325 lbs.
4-1/2"
7-3/8"
 WCS5060-**-PPBG WCS5060R-**-PPBG
6"
1-1/4"
 Thermal Plastic Rubber *Ball w/TG 300 lbs.
4-1/2"
7-3/8"
 WCS5060-**-TRB WCS5060R-**-TRB
6"
1-1/4"
 Yoke Axle & Nut - 350 lbs.
4-1/2"
7-3/8"
 WCS5060-**-YAN WCS5060R-**-YAN

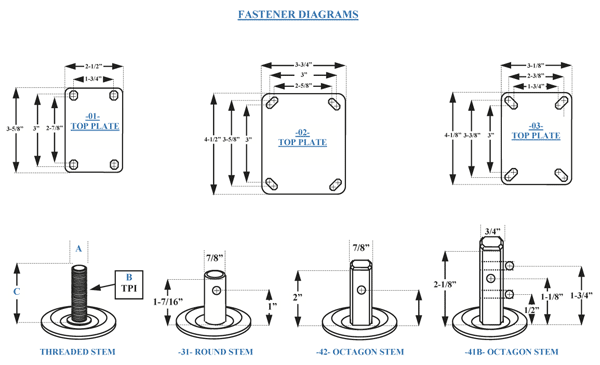

Fastener Type
Code
Size

Top Plate
01
Overall Size: 2-1/2" x 3-5/8"
Bolt Hole Pattern: 1-3/4" x 2-7/8" Slotted to 3"
Attaching Bolt Size: 5/16"

Top Plate
02
Overall Size: 3-3/4" x 4-1/2"
Bolt Hole Pattern: 2-5/8" x 3-5/8" Slotted to 3" x 3"
Attaching Bolt Size: 3/8"

Top Plate
03
Overall Size: 3-1/8" x 4-1/8"
Bolt Hole Pattern:1-3/4" x 3 Slotted to 2-3/8" x 3-3/8"
Attaching Bolt Size: 3/8"

Threaded Stem
(With Lower Nut under Raceway)

21
22
A-B x C
1/2-13" x 1"
1/2-13" x 1-1/2"

Round Plain Stem
31
7/8" x 1-7/16"
With 5/16" Cross Drilled Hole 29/32" Up

Octagon Stem
41B
42
3/4" x 2-1/8" with 3 Cross Drilled Holes
7/8" x 2" with 5/16" Cross Drilled Hole 1” Up

Options For WC 5000 Series
(Add option abbreviation to end of the caster part #)

Integrated TLB TLB
Bearing Cover (For PPB, TRB) BCG
Zerk Axle Z
Stainless Pedal Wheel Brake SPWB (4" Caster Only)
