WC 7600 Series Medium Duty Casters |
|
Swivel # Replace ** with Fastener Code |
Rigid# Replace ** with Fastener Code |
|||||||
6" |
2" |
Pneumatic Sawtooth Thread |
Ball |
275 lbs. |
4-3/4" |
**7-3/8" |
WCP5660-01-B-BB (Black) |
WCP5660R-01-B-BB (Black) |
6" |
2" |
Pneumatic Sawtooth Thread |
Ball |
275 lbs. |
4-3/4" |
**7-3/8" |
WCP5660-01-G-BB (Gray) |
WCP5660R-01-G-BB (Gray) |
6" |
2" |
Pneumatic Sawtooth Thread |
Roller |
275 lbs. |
4-3/4" |
**7-3/8" |
WCP5660-01-B-RB (Black) |
WCP5660R-01-B-RB (Black) |
6" |
2" |
Pneumatic Sawtooth Thread |
Roller |
275 lbs. |
4-3/4" |
**7-3/8" |
WCP5660-01-G-RB (Gray) |
WCP5660R-01-G-RB (Gray) |
6" |
2" |
Pneumatic Sawtooth Thread |
Ball |
275 lbs. |
4-11/16" |
**7-1/2" |
WCP6660-01-B-BB (Black) |
WCP6660R-01-B-BB (Black) |
6" |
2" |
Pneumatic Sawtooth Thread |
Ball |
275 lbs. |
4-11/16" |
**7-1/2" |
WCP6660-01-G-BB (Gray) |
WCP6660R-01-G-BB (Gray) |
6" |
2" |
Pneumatic Sawtooth Thread |
Roller |
275 lbs. |
4-11/16" |
**7-1/2" |
WCP6660-01-B-RB (Black) |
WCP6660R-01-B-RB (Black) |
6" |
2" |
Pneumatic Sawtooth Thread |
Roller |
275 lbs. |
4-11/16" |
**7-1/2" |
WCP6660-01-G-RB (Gray) |
WCP6660R-01-G-RB (Gray) |
8" |
2-1/2" |
(Standard Size) Pneumatic (280/250-4) Sawtooth Thread *Actual diameter: 9” |
Ball Bearing (Standard) |
300 lbs. |
7-1/4" |
**10-1/8" |
WCP7690-**-B (Black) |
WCP7690R-**-B (Black) |
8" |
2-1/2" |
(Standard Size) Pneumatic (280/250-4) Sawtooth Thread *Actual diameter: 9” |
Ball Bearing (Standard) |
300 lbs. |
7-1/4" |
**10-1/8" |
WCP7690-**-G (Gray) |
WCP7690R-**-G (Gray) |
8" |
2-1/2" |
(Standard Size) Pneumatic (280/250-4) Sawtooth Thread *Actual diameter: 9” |
Precision Ball |
300 lbs. |
7-1/4" |
**10-1/8" |
WCP7690-**-B-PB (Black) |
WCP7690R-**-B-PB (Black) |
8" |
2-1/2" |
(Standard Size) Pneumatic (280/250-4) Sawtooth Thread *Actual diameter: 9” |
Precision Ball |
300 lbs. |
7-1/4" |
**10-1/8" |
WCP7690-**-G-PB (Gray) |
WCP7690R-**-G-PB (Gray) |
8" |
2-1/2" |
(Standard Size) Pneumatic (280/250-4) Sawtooth Thread *Actual diameter: 9” |
Flanged Roller |
300 lbs. |
7-1/4" |
**10-1/8" |
WCP7690-**-B-FRB (Black) |
WCP7690R-**-B-FRB (Black) |
8" |
2-1/2" |
(Standard Size) Pneumatic (280/250-4) Sawtooth Thread *Actual diameter: 9” |
Flanged Roller |
300 lbs. |
7-1/4" |
**10-1/8" |
WCP7690-**-G-FRB (Gray) |
WCP7690R-**-G-FRB (Gray) |
8" |
2-1/2" |
(Standard Size) Pneumatic (280/250-4) Sawtooth Thread *Actual diameter: 9” |
Straight Roller |
300 lbs. |
7-1/4" |
**10-1/8" |
WCP7690-**-B-RB (Black) |
WCP7690R-**-B-RB (Black) |
8" |
2-1/2" |
(Standard Size) Pneumatic (280/250-4) Sawtooth Thread *Actual diameter: 9” |
Straight Roller |
300 lbs. |
7-1/4" |
**10-1/8" |
WCP7690-**-G-RB (Gray) |
WCP7690R-**-G-RB (Gray) |
10" |
3" |

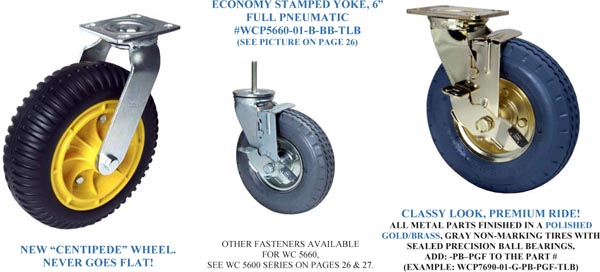

“Centipede Wheel” Solid Microcellular Polyurethane Foam. Not Air Filled |
Ball Bearing (Economy) |
250 lbs. |
8-1/2" |
**11-7/8" |
WCP7610-**-C (Black on Yellow) |
WCP7610R-**-C (Black on Yellow) |
10" |
3" |
“Centipede Wheel” Solid Microcellular Polyurethane Foam. Not Air Filled |
Ball Bearing (Economy) |
250 lbs. |
8-1/2" |
**11-7/8" |
WCP7610-**-CG (Gray on Gray) |
WCP7610R-**-CG (Gray on Gray) |
10" |
3" |
“Centipede Wheel” Solid Microcellular Polyurethane Foam. Not Air Filled |
Ball Bearing (Economy) |
250 lbs. |
8-1/2" |
**11-7/8" |
WCP7610-**-CKG (Black on Gray) |
WCP7610R-**-CKG (Black on Gray) |
10" |
3" |
“Centipede Wheel” Solid Microcellular Polyurethane Foam. Not Air Filled |
Precision Ball (Standard) |
250 lbs. |
8-1/2" |
**11-7/8" |
WCP7610-**-C-PB (Black on Yellow) |
WCP7610R-**-C-PB (Black on Yellow) |
10" |
3" |
“Centipede Wheel” Solid Microcellular Polyurethane Foam. Not Air Filled |
Precision Ball (Standard) |
250 lbs. |
8-1/2" |
**11-7/8" |
WCP7610-**-CG-PB (Gray on Gray) |
WCP7610R-**-CG-PB (Gray on Gray) |
10" |
3" |
“Centipede Wheel” Solid Microcellular Polyurethane Foam. Not Air Filled |
Precision Ball (Standard) |
250 lbs. |
8-1/2" |
**11-7/8" |
WCP7610-**-CKG-PB (Black on Gray) |
WCP7610R-**-CKG-PB (Black on Gray) |
10" |
3-1/2" |
Pneumatic (410/350-4) Sawtooth Thread *Actual diameter: 11-1/4” |
Ball Bearing (Standard) |
350 lbs. |
9-1/4" |
**12-1/16" |
WCP7610-**-B (Black) |
WCP7610R-**-B (Black) |
10" |
3-1/2" |
Pneumatic (410/350-4) Sawtooth Thread *Actual diameter: 11-1/4” |
Ball Bearing (Standard) |
350 lbs. |
9-1/4" |
**12-1/16" |
WCP7610-**-G (Gray) |
WCP7610R-**-G (Gray) |
10" |
3-1/2" |
Pneumatic (410/350-4) Sawtooth Thread *Actual diameter: 11-1/4” |
Precision Ball |
350 lbs. |
9-1/4" |
**12-1/16" |
WCP7610-**-B-PB (Black) |
WCP7610R-**-B-PB (Black) |
10" |
3-1/2" |
Pneumatic (410/350-4) Sawtooth Thread *Actual diameter: 11-1/4” |
Precision Ball |
350 lbs. |
9-1/4" |
**12-1/16" |
WCP7610-**-G-PB (Gray) |
WCP7610R-**-G-PB (Gray) |
10" |
3-1/2" |
Pneumatic (410/350-4) Sawtooth Thread *Actual diameter: 11-1/4” |
Flanged Roller |
350 lbs. |
9-1/4" |
**12-1/16" |
WCP7610-**-B-FRB (Black) |
WCP7610R-**-B-FRB (Black) |
10" |
3-1/2" |
Pneumatic (410/350-4) Sawtooth Thread *Actual diameter: 11-1/4” |
Flanged Roller |
350 lbs. |
9-1/4" |
**12-1/16" |
WCP7610-**-G-FRB (Gray) |
WCP7610R-**-G-FRB (Gray) |
10" |
3-1/2" |
Pneumatic (410/350-4) Sawtooth Thread *Actual diameter: 11-1/4” |
Straight Roller |
350 lbs. |
9-1/4" |
**12-1/16" |
WCP7610-**-B-RB (Black) |
WCP7610R-**-B-RB (Black) |
10" |
3-1/2" |
Pneumatic (410/350-4) Sawtooth Thread *Actual diameter: 11-1/4” |
Straight Roller |
350 lbs. |
9-1/4" |
**12-1/16" |
WCP7610-**-G-RB (Gray) |
WCP7610R-**-G-RB (Gray) |
12" |
3-1/2" |
Pneumatic (410/350-6) Sawtooth Thread *Actual diameter: 13.15” |
Ball Bearing (Standard) |
450 lbs. |
10-3/4" |
**14-1/4" |
WCP7612-**-B (Black) |
WCP7612R-**-B (Black) |
12" |
3-1/2" |
Pneumatic (410/350-6) Sawtooth Thread *Actual diameter: 13.15” |
Precision Ball |
450 lbs. |
10-3/4" |
**14-1/4" |
WCP7612-**-B-PB (Black) |
WCP7612R-**-B-PB (Black) |
12" |
3-1/2" |
Pneumatic (410/350-6) Sawtooth Thread *Actual diameter: 13.15” |
Flanged Roller |
450 lbs. |
10-3/4" |
**14-1/4" |
WCP7612-**-B-FRB (Black) |
WCP7612R-**-B-FRB (Black) |
12" |
3-1/2" |
Pneumatic (410/350-6) Sawtooth Thread *Actual diameter: 13.15” |
Straight Roller |
450 lbs. |
10-3/4" |
**14-1/4" |
WCP7612-**-B-RB (Black) |
WCP7612R-**-B-RB (Black) |
** Overall height will vary depending on the load capacity applied

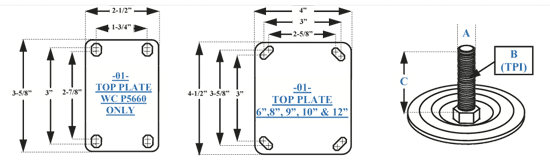

Fastener Type |
Code |
Size |
For WC 5660 only Top Plate |
For WC 5660
only 01 |
For WC 5660 only Overall Size: 2-1/2" x 3-3/4" Bolt Hole Pattern: 1-3/4" x 2-7/8" Slotted to 3" Attaching Bolt Size: 5/16" |
(Standard plate) Top Plate |
01 (-02- for WC 5660) |
Overall Size: 4" x 4-1/2" Bolt Hole Spacing: 2-5/8" x 3-5/8 Slotted to 3" x 3" Attaching Bolt Size: 3/8" |
Threaded Stem |
21 23 24 |
A-B x C 1/2-13 x 1-1/2 1/2-13 x 2-1/2 5/8-11 x 1-3/4 |
Options For WC 7600 Series (Add option abbreviation to end of the caster part #) |
|
Top Lock Brake | TLB |
Integrated Top Lock Brake (For WC 5600 6" and WC 6600 6" Only) |
TLB |
Position Lock | PSL |
Quick Change Plate "Tool-Less" | WQCP-01-6600 (Zinc, Bolt-On Type) |
WQCP-01-6600-UNPLATED (Weld-On) | |
Special Finishes (Factory Order) |
|
Polished Gold Finish | PGF |
Black Oxide | BO |
Nickel | N |
Powder Coat* | PC |
*Please inquire about color options
