WC 5700 Series Medium Duty Casters

  • Economy total–lock series
  • Built-in total-lock one-step brake system locks down both the swivel and the wheel simultaneously
  • Case hardened double ball raceways provide extra capacity & durability
  • Thermal plastic rubber and polyurethane on polyolefin wheels do not mark floors, and come with a single precision ball bearing with integrated spanner bushing & thread guard. Rolls exceptionally well
  • Applications: Movie and soundstage equipment, hospital/medical equipment, computer equipment stands and mobile workstations , electronics and hi-technology equipment and carts, diognostic equipment, etc.

Swivel #
Replace ** with
Fastener Code		 Rigid#
Replace ** with
Fastener Code

3"
1-1/4"
 Soft Rubber Nylon 150 lbs.
4-5/16"
4-1/4"
 WC5730-**-SR WC5730R-**-SR
3"
1-1/4"
 Soft Rubber Ball 150 lbs.
4-5/16"
4-1/4"
 WC5730-**-SRB WC5730R-**-SRB
3"
1-1/4"
 Poly-U on Poly-O (Red on Gray) Ball 250 lbs.
4-5/16"
4-1/4"
 WC5730-**-PPBR WC5730R-**-PPBR
3"
1-1/4"
 Poly-U on Poly-O (Gray on Gray) P.Ball 250 lbs.
4-5/16"
4-1/4"
 WC5730-**-PPSBG WC5730R-**-PPSBG
3"
1-1/4"
 Poly-U on Poly-O (Gray on Beige) Plain 250 lbs.
4-5/16"
4-1/4"
 WC5730-**-PPPG WC5730R-**-PPPG
3"
1-1/4"
 Thermal Plastic Rubber Ball 210 lbs.
4-5/16"
4-1/4"
 WC5730-**-TRB WC5730R-**-TRB
3"
1-1/4"
 Thermal Plastic Rubber Plain 210 lbs.
4-5/16"
4-1/4"
 WC5730-**-TRP WC5730R-**-TRP
3"
1-1/4"
 Thermal Plastic Rubber P.Ball 210 lbs.
4-5/16"
4-1/4"
 WC5730-**-TRSB WC5730R-**-TRSB
3"
1-1/4"
 Rubber on Aluminum Annular 240 lbs.
4-5/16"
4-1/4"
 WC5730-**-RAL WC5730R-**-RAL
3"
1-1/4"
 Polyurethane on Aluminum Annular 240 lbs.
4-5/16"
4-1/4"
 WC5730-**-PAL WC5730R-**-PAL
3"
1-1/4"
 Yoke Axle & Nut - 240 lbs.
4-5/16"
4-1/4"
 WC5730-**-YAN WC5730R-**-YAN

4"
1-1/4"
 Soft Rubber Nylon 170 lbs.
4-5/16"
5-1/8"
 WC5740-**-SR WC5740R-**-SR
4"
1-1/4"
 Soft Rubber Ball 170 lbs.
4-5/16"
5-1/8"
 WC5740-**-SRB WC5740R-**-SRB
4"
1-1/4"
 Poly-U on Poly-O (Gray on Beige) Ball 250 lbs.
4-5/16"
5-1/8"
 WC5740-**-PPBG WC5740R-**-PPBG
4"
1-1/4"
 Poly-U on Poly-O (Gray on Gray) P.Ball 250 lbs.
4-5/16"
5-1/8"
 WC5740-**-PPSBG WC5740R-**-PPSBG
4"
1-1/4"
 Poly-U on Poly-O (Gray on Beige) Plain 250 lbs.
4-5/16"
5-1/8"
 WC5740-**-PPPG WC5740R-**-PPPG
4"
1-1/4"
 Thermal Plastic Rubber Ball 250 lbs.
4-5/16"
5-1/8"
 WC5740-**-TRB WC5740R-**-TRB
4"
1-1/4"
 Thermal Plastic Rubber Plain 250 lbs.
4-5/16"
5-1/8"
 WC5740-**-TRP WC5740R-**-TRP
4"
1-1/4"
 Thermal Plastic Rubber P.Ball 250 lbs.
4-5/16"
5-1/8"
 WC5740-**-TRSB WC5740R-**-TRSB
4"
1-1/4"
 Rubber on Aluminum Annular 250 lbs.
4-5/16"
5-1/8"
 WC5740-**-RAL WC5740R-**-RAL
4"
1-1/4"
 Polyurethane on Aluminum Annular 250 lbs.
4-5/16"
5-1/8"
 WC5740-**-PAL WC5740R-**-PAL
4"
1-1/4"
 Yoke Axle & Nut - 250 lbs.
4-5/16"
5-1/8"
 WC5740-**-YAN WC5740R-**-YAN

5"
1-1/4"
 Soft Rubber Nylon 200 lbs.
4-5/16"
6-3/16"
 WC5750-**-SR WC5750R-**-SR
5"
1-1/4"
 Soft Rubber Ball 200 lbs.
4-5/16"
6-3/16"
 WC5750-**-SRB WC5750R-**-SRB
5"
1-1/4"
 Poly-U on Poly-O (Gray on Beige) Ball 275 lbs.
4-5/16"
6-3/16"
 WC5750-**-PPBG WC5750R-**-PPBG
5"
1-1/4"
 Poly-U on Poly-O (Gray on Gray) P.Ball 250 lbs.
4-5/16"
6-3/16"
 WC5750-**-PPSBG WC5750R-**-PPSBG
5"
1-1/4"
 Poly-U on Poly-O (Gray on Beige) Plain 275 lbs.
4-5/16"
6-3/16"
 WC5750-**-PPPG WC5750R-**-PPPG
5"
1-1/4"
 Thermal Plastic Rubber Ball 250 lbs.
4-5/16"
6-3/16"
 WC5750-**-TRB WC5750R-**-TRB
5"
1-1/4"
 Thermal Plastic Rubber Plain 250 lbs.
4-5/16"
6-3/16"
 WC5750-**-TRP WC5750R-**-TRP
5"
1-1/4"
 Thermal Plastic Rubber P.Ball 250 lbs.
4-5/16"
6-3/16"
 WC5750-**-TRSB WC5750R-**-TRSB
5"
1-1/4"
 Round Thermal Plastic Rubber Graphite 250 lbs.
4-5/16"
6-3/16"
 WC5750-**-RTPO WC5750R-**-RTPO
5"
1-1/4"
 Rubber on Aluminum Annular 250 lbs.
4-5/16"
6-3/16"
 WC5750-**-RAL WC5750R-**-RAL
5"
1-1/4"
 Polyurethane on Aluminum Annular 275 lbs.
4-5/16"
6-3/16"
 WC5750-**-PAL WC5750R-**-PAL
5"
1-1/4"
 Yoke Axle & Nut - 275 lbs.
4-5/16"
6-3/16"
 WC5750-**-YAN WC5750R-**-YAN


Stainless Steel version available. Call us for more information.
To order the stainless steel version, add "S" to the prefix of the part number.
(Example: S5750-1-PPPG-SWB)

*For TOTAL LOCK CASTER, ADD “SWB” TO THE END OF THE PART NUMBER

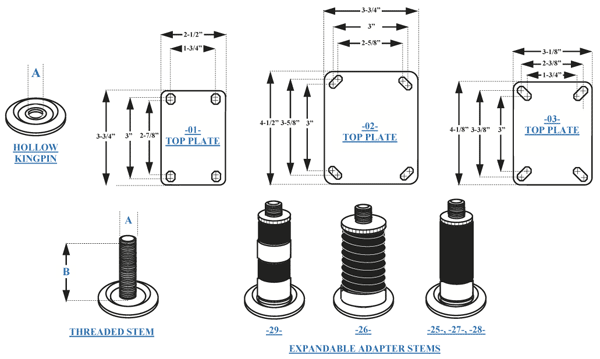

Fastener Type
Code
Size

Hollow KIngpin
038
012
For (A) 3/8 Attaching Bolt
For (A) 1/2 Attaching Bolt

Top Plate
01
Overall Size: 2-5/8 x 3-3/4
Bolt Hole Pattern: 1-3/4 x 2-7/8 Slotted To 3
Attaching Bolt Size: 5/16

Top Plate
02
Overall Size: 3-3/4 x 4-1/2
Bolt Hole Pattern: 2-5/8 x 3-5/8 Slotted To 3 x 3
Attaching Bolt Size: 3/8

Top Plate
03
Overall Size: 3-1/8 x 4-1/8
Bolt Hole Pattern: 1-3/4 x 3
Slotted To 2-3/8 x 3-3/8
Attaching Bolt Size: 3/8

Threaded Stem
(With Lower Nut under Raceway)

21
22
26N
A-B x C
1/2-13 x 1
1/2-13 x 1-1/2
1/2-13 x 2-11/16

Expandable Adapter Stems
25
26
27
28
29
For 1-3/8 I.D. 1-1/2 O.D. Tubing
For 1-1/2” I.D. 1-5/8 O.D. Tubing
For 7/8” I.D. 1” O.D. Tubing
For 1” I.D. 1-1/8” O.D. Tubing
For 1-1/8” I.D. 1-1/4 O.D. Tubing

Options For WC 5000 Series
(Add option abbreviation to end of the caster part #)

Bearing Cover (For PPB, TRB) BCG
Thread Guards (Use with Ball Bearing) TG
Matching Swivel, No Brake SWB
Quick Change Plate for T.P. QCP-01-5200 (Zinc Bolt-On Type)
  QCP-01-5200-UNPLATED (Weld-On)
