Home > Casters > Medium Duty
WC 5200 Series Medium Duty Casters |
|
Swivel # Replace ** with Fastener Code |
Rigid# Replace ** with Fastener Code |
|||||||
3" |
1-1/4" |
Solid Polyurethane | Delrin | 300 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-SPU | WC5230R-**-SPU |
3" |
1-1/4" |
Soft Rubber | Nylon | 150 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-SR | WC5230R-**-SR |
3" |
1-1/4" |
Soft Rubber | Ball | 150 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-SRB | WC5230R-**-SRB |
3" |
1-1/4" |
Hard Rubber | Nylon | 250 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-HR | WC5230R-**-HR |
3" |
1-1/4" |
Hard Rubber | Ball | 250 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-HRB | WC5230R-**-HRB |
3" |
1-1/4" |
Phenolic | STL DSW | 350 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-PHN | WC5230R-**-PHN |
3" |
1-1/4" |
Polyolefin | Plain | 300 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-HDP | WC5230R-**-HDP |
3" |
1-1/4" |
Polyolefin | Ball | 300 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-HDPB | WC5230R-**-HDPB |
3" |
1-1/4" |
Steel (Cast Iron) | Plain | 300 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-STL | WC5230R-**-STL |
3" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Ball | 250 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-PPBG | WC5230R-**-PPBG |
3" |
1-1/4" |
Poly-U / Poly-O (Blue on Gray) | Ball | 250 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-PPBL | WC5230R-**-PPBL |
3" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Plain | 250 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-PPPG | WC5230R-**-PPPG |
3" |
1-1/4" |
Thermal Plastic Rubber | Ball | 210 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-TRB | WC5230R-**-TRB |
3" |
1-1/4" |
Thermal Plastic Rubber | Plain | 210 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-TRP | WC5230R-**-TRP |
3" |
1-1/4" |
Rubber on Aluminum | Annular | 250 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-RAL | WC5230R-**-RAL |
3" |
1-1/4" |
Polyurethane on Aluminum | Annular | 350 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-PAL | WC5230R-**-PAL |
3" |
1-1/4" |
Yoke Axle & Nut | - | 350 lbs. | 2-7/8" |
4-1/16" |
WC5230-**-YAN | WC5230R-**-YAN |
3-1/2" |
1-1/4" |
Solid Polyurethane | Delrin | 350 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-SPU | WC5235R-**-SPU |
3-1/2" |
1-1/4" |
Soft Rubber | Nylon | 160 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-SR | WC5235R-**-SR |
3-1/2" |
1-1/4" |
Hard Rubber | Nylon | 160 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-HR | WC5235R-**-HR |
3-1/2" |
1-1/4" |
Polyolefin | Plain | 300 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-HDP | WC5235R-**-HDP |
3-1/2" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Ball | 250 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-PPBG | WC5235R-**-PPBG |
3-1/2" |
1-1/4" |
Poly-U / Poly-O (Black on Gray) | Ball | 250 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-PPBK | WC5235R-**-PPBK |
3-1/2" |
1-1/4" |
Poly-U / Poly-O (Blue on Gray) | Ball | 250 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-PPBL | WC5235R-**-PPBL |
3-1/2" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Plain | 250 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-PPPG | WC5235R-**-PPPG |
3-1/2" |
1-1/4" |
Thermal Plastic Rubber | Ball | 250 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-TRB | WC5235R-**-TRB |
3-1/2" |
1-1/4" |
Thermal Plastic Rubber | Plain | 250 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-TRP | WC5235R-**-TRP |
3-1/2" |
1-1/4" |
Rubber on Aluminum | Annular | 250 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-RAL | WC5235R-**-RAL |
3-1/2" |
1-1/4" |
Polyurethane on Aluminum | Annular | 350 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-PAL | WC5235R-**-PAL |
3-1/2" |
1-1/4" |
Yoke Axle & Nut | - | 350 lbs. | 3-1/8" |
4-5/8" |
WC5235-**-YAN | WC5235R-**-YAN |
4" |
1-1/4" |
Solid Polyurethane | Delrin | 350 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-SPU | WC5240R-**-SPU |
4" |
1-1/4" |
Soft Rubber | Nylon | 170 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-SR | WC5240R-**-SR |
4" |
1-1/4" |
Soft Rubber | Ball | 170 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-SRB | WC5240R-**-SRB |
4" |
1-1/4" |
Hard Rubber | Nylon | 275 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-HR | WC5240R-**-HR |
4" |
1-1/4" |
Hard Rubber | Ball | 275 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-HRB | WC5240R-**-HRB |
4" |
1-1/4" |
Gray Hard Rubber | Plain | 255 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-GHR | WC5240R-**-GHR |
4" |
1-1/4" |
High Temp Glass Filled Nylon | Steel | 350 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-HTGFN | WC5240R-**-HTGFN |
4" |
1-1/4" |
High Temp Phenolic | Steel | 350 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-HTPHN | WC5240R-**-HTPHN |
4" |
1-1/4" |
Phenolic | STL DSW | 350 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-PHN | WC5240R-**-PHN |
4" |
1-1/4" |
Polyolefin | Plain | 300 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-HDP | WC5240R-**-HDP |
4" |
1-1/4" |
Steel (Cast Iron) | Steel | 350 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-STL | WC5240R-**-STL |
4" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Ball | 275 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-PPBG | WC5240R-**-PPBG |
4" |
1-1/4" |
Poly-U / Poly-O (Black on Gray) | Ball | 275 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-PPBK | WC5240R-**-PPBK |
4" |
1-1/4" |
Poly-U / Poly-O (Blue on Gray) | Ball | 275 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-PPBL | WC5240R-**-PPBL |
4" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Plain | 275 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-PPPG | WC5240R-**-PPPG |
4" |
1-1/4" |
Thermal Plastic Rubber | Ball | 250 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-TRB | WC5240R-**-TRB |
4" |
1-1/4" |
Thermal Plastic Rubber | Plain | 250 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-TRP | WC5240R-**-TRP |
4" |
1-1/4" |
Rubber on Aluminum | Annular | 250 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-RAL | WC5240R-**-RAL |
4" |
1-1/4" |
Polyurethane on Aluminum | Annular | 350 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-PAL | WC5240R-**-PAL |
4" |
1-1/4" |
Yoke Axle & Nut | - | 350 lbs. | 3-1/2" |
5-1/8" |
WC5240-**-YAN | WC5240R-**-YAN |
5" |
1-1/4" |
Solid Polyurethane | Delrin | 350 lbs. | 4" |
6-3/16" |
WC5250-**-SPU | WC5250R-**-SPU |
5" |
1-1/4" |
Soft Rubber | Nylon | 200 lbs. | 4" |
6-3/16" |
WC5250-**-SR | WC5250R-**-SR |
5" |
1-1/4" |
Soft Rubber | Ball | 200 lbs. | 4" |
6-3/16" |
WC5250-**-SRB | WC5250R-**-SRB |
5" |
1-1/4" |
Hard Rubber | Nylon | 280 lbs. | 4" |
6-3/16" |
WC5250-**-HR | WC5250R-**-HR |
5" |
1-1/4" |
Hard Rubber | Ball | 280 lbs. | 4" |
6-3/16" |
WC5250-**-HRB | WC5250R-**-HRB |
5" |
1-1/4" |
Phenolic | STL DSW | 350 lbs. | 4" |
6-3/16" |
WC5250-**-PHN | WC5250R-**-PHN |
5" |
1-1/4" |
High Temp Glass Filled Nylon | Steel | 350 lbs. | 4" |
6-3/16" |
WC5250-**-HTGFN | WC5250R-**-HTGFN |
5" |
1-1/4" |
Polyolefin | Plain | 325 lbs. | 4" |
6-3/16" |
WC5250-**-HDP | WC5250R-**-HDP |
5" |
1-1/4" |
Steel (Cast Iron) | Steel | 350 lbs. | 4" |
6-3/16" |
WC5250-**-STL | WC5250R-**-STL |
5" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Ball | 300 lbs. | 4" |
6-3/16" |
WC5250-**-PPBG | WC5250R-**-PPBG |
5" |
1-1/4" |
Poly-U / Poly-O (Black on Gray) | Ball | 300 lbs. | 4" |
6-3/16" |
WC5250-**-PPBK | WC5250R-**-PPBK |
5" |
1-1/4" |
Poly-U / Poly-O (Blue on Gray) | Ball | 300 lbs. | 4" |
6-3/16" |
WC5250-**-PPBL | WC5250R-**-PPBL |
5" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Plain | 300 lbs. | 4" |
6-3/16" |
WC5250-**-PPPG | WC5250R-**-PPPG |
5" |
1-1/4" |
Thermal Plastic Rubber | Ball | 250 lbs. | 4" |
6-3/16" |
WC5250-**-TRB | WC5250R-**-TRB |
5" |
1-1/4" |
Thermal Plastic Rubber | Plain | 250 lbs. | 4" |
6-3/16" |
WC5250-**-TRP | WC5250R-**-TRP |
5" |
1-1/4" |
Round Thermal Plastic Rubber | Graphite | 250 lbs. | 4" |
6-3/16" |
WC5250-**-RTPO | WC5250R-**-RTPO |
5" |
1-1/4" |
Rubber on Aluminum | Annular | 250 lbs. | 4" |
6-3/16" |
WC5250-**-RAL | WC5250R-**-RAL |
5" |
1-1/4" |
Polyurethane on Aluminum | Annular | 350 lbs. | 4" |
6-3/16" |
WC5250-**-PAL | WC5250R-**-PAL |
5" |
1-1/4" |
Yoke Axle & Nut | - | 350 lbs. | 4" |
6-3/16" |
WC5250-**-YAN | WC5250R-**-YAN |
6" |
1-1/4" |
Solid Polyurethane | Delrin | 350 lbs. | 4-1/2" |
7-3/8" |
WC5260-**-SPU | WC5260R-**-SPU |
6" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Ball | 325 lbs. | 4-1/2" |
7-3/8" |
WC5260-**-PPBG-PTG | WC5260R-**-PPBG-PTG |
6" |
1-1/4" |
Thermal Plastic Rubber | Ball | 300 lbs. | 4-1/2" |
7-3/8" |
WC5260-**-TRB | WC5260R-**-TRB |
6" |
1-1/4" |
Yoke Axle & Nut | - | 350 lbs. | 4-1/2" |
7-3/8" |
WC5260-**-YAN | WC5260R-**-YAN |

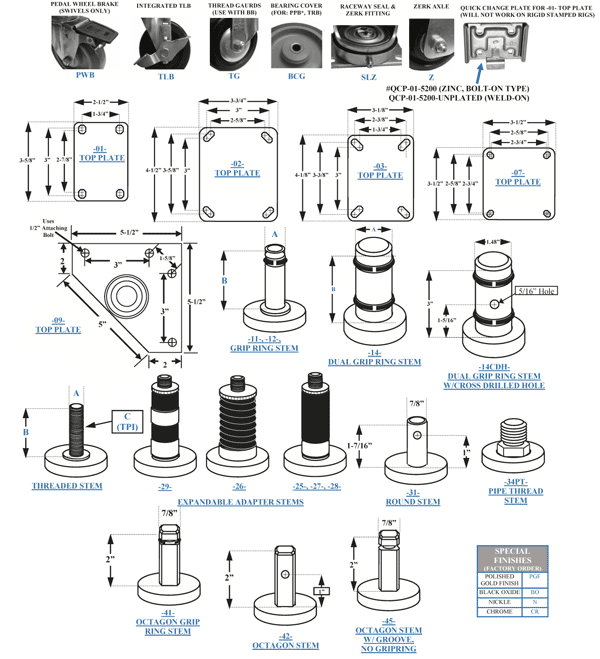

Fastener Type |
Code |
Size |
Top Plate |
01 |
Overall Size: 2-1/2 x 3-5/8 Bolt Hole Pattern: 1-3/4 x 2-7/8 Slotted to 3 Attaching Bolt Size: 5/16 |
Top Plate |
02 |
Overall Size: 3-3/4 x 4-1/2 Bolt Hole Pattern: 2-5/8 x 3-5/8 Slotted to 3 x 3 Attaching Bolt Size: 3/8 |
Top Plate |
03 |
Overall Size: 3-1/8 x 4-1/8 Bolt Hole Pattern: 1-3/4 x 3 Slotted to 2-3/8 x 3-3/8 Attaching Bolt Size: 3/8 |
Top Plate |
07 |
Overall Size: 3-1/2 x 3-1/2 Bolt Hole Pattern: 2-5/8 x 2-5/8 TO 2-3/4 x 2-3/4 Attaching Bolt Size: 5/16 |
Grip Ring Stem |
11 12 14 14CDH |
7/16 x 1-1/2 .845 x 2-3/16 1.48 x 3 With Dual Grip Rings 1.48 x 3 with Dual Grip Rings W-5/16 Cross Drilled Hole |
Threaded Stem (With Lower Nut Under Raceway) Pipe Thread (NPT) |
21 22 23 24 26N 58134 34134 344 34PT |
A-B x C 1/2-13 x 1 1/2-13 x 1-1/2 1/2-13 x 2-3/16 1/2-13 x 2-1/4 1/2-13 x 2-13/16 5/8-11 x 1-3/4 3/4-10 x 1-3/4 3/4-10 x 4 Threaded for 3/4 Pipe Coupling x 3/4 Long |
Expandable Adapter Stems |
25 26 27 28 29 |
FOR 1-3/8 I.D. 1-1/2 O.D. Tubing FOR 1-1/2” I.D. 1-5/8 O.D. Tubing FOR 7/8” I.D. 1” O.D. Tubing FOR 1” I.D. 1-1/8” O.D. Tubing FOR 1-1/8” I.D. 1-1/4 O.D. Tubing |
Round Plain Stem |
31 |
7/8 x 1-7/16 With 5/16 Cross Drilled Hole 29/32 Up |
Octagon Stem w/ Grip Ring Octagon Stem w/ Cross Drilled Hole Octagon Stem w/ Groove (No Ring) |
41 42 45 |
7/8 x 2-1/4 With One Grip Ring (Top) 7/8 x 2 With 5/16 Cross Drilled Hole 1” UP 7/8 x 2-1/4 (Groove With No Grip Ring) |
Square Stem |
51 |
7/8 x 2 With 1/4” Cross Drilled Hole 1” Up |
Round Stem For Adjustable Table Leg |
61 62 |
1-1/4” x 4” With A 3/4” Threaded Hole 3-3/4” Deep. 1-1/4” x 2” With A 3/4” Threaded Hole 1-1/4” Deep. |
Special Finishes (Factory Order) |
|
Polished Gold Finish | PGF |
Black Oxide | BO |
Nickel | N |
Chrome | CR |
