WC 5000 Series Medium Duty Casters |
|
Swivel # Replace ** with Fastener Code |
Rigid# Replace ** with Fastener Code |
|||||||
3" |
1-1/4" |
Solid Polyurethane | Delrin | 300 lbs. | 3" |
4" |
WC5030-**-SPU | WC5030R-**-SPU |
3" |
1-1/4" |
Soft Rubber | Nylon | 150 lbs. | 3" |
4" |
WC5030-**-SR | WC5030R-**-SR |
3" |
1-1/4" |
Soft Rubber | Ball | 150 lbs. | 3" |
4" |
WC5030-**-SRB | WC5030R-**-SRB |
3" |
1-1/4" |
Hard Rubber | Nylon | 250 lbs. | 3" |
4" |
WC5030-**-HR | WC5030R-**-HR |
3" |
1-1/4" |
Hard Rubber | Ball | 250 lbs. | 3" |
4" |
WC5030-**-HRB | WC5030R-**-HRB |
3" |
1-1/4" |
Phenolic | STL DSW | 350 lbs. | 3" |
4" |
WC5030-**-PHN | WC5030R-**-PHN |
3" |
1-1/4" |
Polyolefin | Plain | 300 lbs. | 3" |
4" |
WC5030-**-HDP | WC5030R-**-HDP |
3" |
1-1/4" |
Polyolefin | Ball | 300 lbs. | 3" |
4" |
WC5030-**-HDPB | WC5030R-**-HDPB |
3" |
1-1/4" |
Steel (Cast Iron) | Plain | 300 lbs. | 3" |
4" |
WC5030-**-STL | WC5030R-**-STL |
3" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Ball | 250 lbs. | 3" |
4" |
WC5030-**-PPBG | WC5030R-**-PPBG |
3" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Plain | 250 lbs. | 3" |
4" |
WC5030-**-PPPG | WC5030R-**-PPPG |
3" |
1-1/4" |
Thermal Plastic Rubber | Ball | 210 lbs. | 3" |
4" |
WC5030-**-TRB | WC5030R-**-TRB |
3" |
1-1/4" |
Thermal Plastic Rubber | Plain | 210 lbs. | 3" |
4" |
WC5030-**-TRP | WC5030R-**-TRP |
3" |
1-1/4" |
Rubber on Aluminum | Annular | 250 lbs. | 3" |
4" |
WC5030-**-RAL | WC5030R-**-RAL |
3" |
1-1/4" |
Polyurethane on Aluminum | Annular | 350 lbs. | 3" |
4" |
WC5030-**-PAL | WC5030R-**-PAL |
3" |
1-1/4" |
Yoke Axle & Nut | - | 350 lbs. | 3" |
4" |
WC5030-**-YAN | WC5030R-**-YAN |
3-1/2" |
1-1/4" |
Solid Polyurethane | Delrin | 350 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-SPU | WC5035R-**-SPU |
3-1/2" |
1-1/4" |
Soft Rubber | Nylon | 160 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-SR | WC5035R-**-SR |
3-1/2" |
1-1/4" |
Hard Rubber | Nylon | 275 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-HR | WC5035R-**-HR |
3-1/2" |
1-1/4" |
Polyolefin | Plain | 300 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-HDP | WC5035R-**-HDP |
3-1/2" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Ball | 250 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-PPBG | WC5035R-**-PPBG |
3-1/2" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Ball | 250 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-PPBK | WC5035R-**-PPBK |
3-1/2" |
1-1/4" |
Poly-U / Poly-O (Blue on Gray) | Ball | 250 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-PPBL | WC5035R-**-PPBL |
3-1/2" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Plain | 250 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-PPPG | WC5035R-**-PPPG |
3-1/2" |
1-1/4" |
Thermal Plastic Rubber | Ball | 250 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-TRB | WC5035R-**-TRB |
3-1/2" |
1-1/4" |
Thermal Plastic Rubber | Plain | 250 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-TRP | WC5035R-**-TRP |
3-1/2" |
1-1/4" |
Rubber on Aluminum | Annular | 250 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-RAL | WC5035R-**-RAL |
3-1/2" |
1-1/4" |
Polyurethane on Aluminum | Annular | 350 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-PAL | WC5035R-**-PAL |
3-1/2" |
1-1/4" |
Yoke Axle & Nut | - | 350 lbs. | 3-1/8" |
4-5/8" |
WC5035-**-YAN | WC5035R-**-YAN |
4" |
1-1/4" |
Solid Polyurethane | Delrin | 350 lbs. | 3-1/2" |
5" |
WC5040-**-SPU | WC5040R-**-SPU |
4" |
1-1/4" |
Soft Rubber | Nylon | 170 lbs. | 3-1/2" |
5" |
WC5040-**-SR | WC5040R-**-SR |
4" |
1-1/4" |
Soft Rubber | Ball | 170 lbs. | 3-1/2" |
5" |
WC5040-**-SRB | WC5040R-**-SRB |
4" |
1-1/4" |
Hard Rubber | Nylon | 275 lbs. | 3-1/2" |
5" |
WC5040-**-HR | WC5040R-**-HR |
4" |
1-1/4" |
Hard Rubber | Ball | 275 lbs. | 3-1/2" |
5" |
WC5040-**-HRB | WC5040R-**-HRB |
4" |
1-1/4" |
Gray Hard Rubber | Plain | 255 lbs. | 3-1/2" |
5" |
WC5040-**-GHR | WC5040R-**-GHR |
4" |
1-1/4" |
High Temp Glass Filled Nylon | Steel | 350 lbs. | 3-1/2" |
5" |
WC5040-**-HTGFN | WC5040R-**-HTGFN |
4" |
1-1/4" |
High Temp Phenolic | Steel | 350 lbs. | 3-1/2" |
5" |
WC5040-**-HTPHN | WC5040R-**-HTPHN |
4" |
1-1/4" |
Phenolic | STL DSW | 350 lbs. | 3-1/2" |
5" |
WC5040-**-PHN | WC5040R-**-PHN |
4" |
1-1/4" |
Polyolefin | Plain | 300 lbs. | 3-1/2" |
5" |
WC5040-**-HDP | WC5040R-**-HDP |
4" |
1-1/4" |
Steel (Cast Iron) | Steel | 350 lbs. | 3-1/2" |
5" |
WC5040-**-STL | WC5040R-**-STL |
4" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Ball | 275 lbs. | 3-1/2" |
5" |
WC5040-**-PPBG | WC5040R-**-PPBG |
4" |
1-1/4" |
Poly-U / Poly-O (Black on Gray) | Ball | 275 lbs. | 3-1/2" |
5" |
WC5040-**-PPBK | WC5040R-**-PPBK |
4" |
1-1/4" |
Poly-U / Poly-O (Blue on Gray) | Ball | 275 lbs. | 3-1/2" |
5" |
WC5040-**-PPBL | WC5040R-**-PPBL |
4" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Plain | 275 lbs. | 3-1/2" |
5" |
WC5040-**-PPPG | WC5040R-**-PPPG |
4" |
1-1/4" |
Thermal Plastic Rubber | Ball | 250 lbs. | 3-1/2" |
5" |
WC5040-**-TRB | WC5040R-**-TRB |
4" |
1-1/4" |
Thermal Plastic Rubber | Plain | 250 lbs. | 3-1/2" |
5" |
WC5040-**-TRP | WC5040R-**-TRP |
4" |
1-1/4" |
Rubber on Aluminum | Annular | 250 lbs. | 3-1/2" |
5" |
WC5040-**-RAL | WC5040R-**-RAL |
4" |
1-1/4" |
Polyurethane on Aluminum | Annular | 350 lbs. | 3-1/2" |
5" |
WC5040-**-PAL | WC5040R-**-PAL |
4" |
1-1/4" |
Yoke Axle & Nut | - | 350 lbs. | 3-1/2" |
5" |
WC5040-**-YAN | WC5040R-**-YAN |
5" |
1-1/4" |
Solid Polyurethane | Delrin | 350 lbs. | 4" |
6-3/16" |
WC5050-**-SPU | WC5050R-**-SPU |
5" |
1-1/4" |
Soft Rubber | Nylon | 200 lbs. | 4" |
6-3/16" |
WC5050-**-SR | WC5050R-**-SR |
5" |
1-1/4" |
Soft Rubber | Ball | 200 lbs. | 4" |
6-3/16" |
WC5050-**-SRB | WC5050R-**-SRB |
5" |
1-1/4" |
Hard Rubber | Nylon | 280 lbs. | 4" |
6-3/16" |
WC5050-**-HR | WC5050R-**-HR |
5" |
1-1/4" |
Hard Rubber | Ball | 280 lbs. | 4" |
6-3/16" |
WC5050-**-HRB | WC5050R-**-HRB |
5" |
1-1/4" |
Phenolic | Steel | 350 lbs. | 4" |
6-3/16" |
WC5050-**-PHN | WC5050R-**-PHN |
5" |
1-1/4" |
High Temp Glass Filled Nylon | Steel | 350 lbs. | 4" |
6-3/16" |
WC5050-**-HTGFN | WC5050R-**-HTGFN |
5" |
1-1/4" |
Polyolefin | Plain | 325 lbs. | 4" |
6-3/16" |
WC5050-**-HDP | WC5050R-**-HDP |
5" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Ball | 300 lbs. | 4" |
6-3/16" |
WC5050-**-PPBG | WC5050R-**-PPBG |
5" |
1-1/4" |
Poly-U / Poly-O (Black on Gray) | Ball | 300 lbs. | 4" |
6-3/16" |
WC5050-**-PPBK | WC5050R-**-PPBK |
5" |
1-1/4" |
Poly-U / Poly-O (Blue on Gray) | Ball | 300 lbs. | 4" |
6-3/16" |
WC5050-**-PPBL | WC5050R-**-PPBL |
5" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Plain | 300 lbs. | 4" |
6-3/16" |
WC5050-**-PPPG | WC5050R-**-PPPG |
5" |
1-1/4" |
Thermal Plastic Rubber | Ball | 250 lbs. | 4" |
6-3/16" |
WC5050-**-TRB | WC5050R-**-TRB |
5" |
1-1/4" |
Thermal Plastic Rubber | Plain | 250 lbs. | 4" |
6-3/16" |
WC5050-**-TRP | WC5050R-**-TRP |
5" |
1-1/4" |
Round Thermal Plastic Rubber | Graphite | 250 lbs. | 4" |
6-3/16" |
WC5050-**-RTPO | WC5050R-**-RTPO |
5" |
1-1/4" |
Rubber on Aluminum | Annular | 250 lbs. | 4" |
6-3/16" |
WC5050-**-RAL | WC5050R-**-RAL |
5" |
1-1/4" |
Polyurehane on Aluminum | Annular | 350 lbs. | 4" |
6-3/16" |
WC5050-**-PAL | WC5050R-**-PAL |
5" |
1-1/4" |
Yoke Axle & Nut | - | 350 lbs. | 4" |
6-3/16" |
WC5050-**-YAN | WC5050R-**-YAN |
6" |
1-1/4" |
Solid Polyurethane | Delrin | 350 lbs. | 4-1/2" |
7-3/8" |
WC5060-**-SPU | WC5060R-**-SPU |
6" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Ball | 325 lbs. | 4-1/2" |
7-3/8" |
WC5060-**-PPBG | WC5060R-**-PPBG |
6" |
1-1/4" |
Thermal Plastic Rubber | Ball | 300 lbs. | 4-1/2" |
7-3/8" |
WC5060-**-TRB | WC5060R-**-TRB |
6" |
1-1/4" |
Yoke Axle & Nut | - | 350 lbs. | 4-1/2" |
7-3/8" |
WC5060-**-YAN | WC5060R-**-YAN |

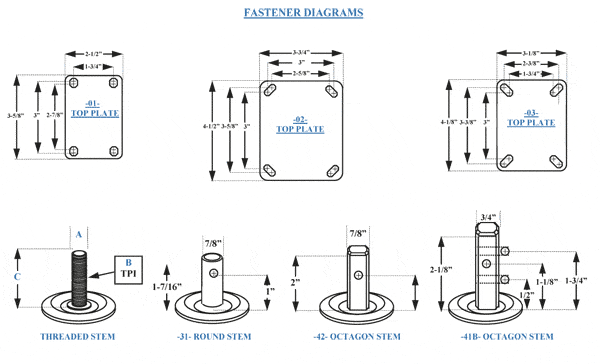

Fastener Type |
Code |
Size |
Top Plate |
01 |
Overall Size: 2-1/2 x 3-5/8 Bolt Hole Pattern: 1-3/4 x 2-7/8 Slotted to 3 Attaching Bolt Size: 5/16 |
Top Plate |
02 |
Overall Size: 3-3/4 x 4-1/2 Bolt Hole Pattern: 2-5/8 x 3-5/8 Slotted to 3 x 3 Attaching Bolt Size: 3/8 |
Top Plate |
03 |
Overall Size: 3-1/8 x 4-1/8 Bolt Hole Pattern:1-3/4 x 3 Slotted to 2-3/8 x 3-3/8 Attaching Bolt Size: 3/8 |
Threaded Stem (With Lower Nut Under Raceway) |
21 22 |
A-B x C 1/2-13 x 1 1/2-13 x 1-1/2 |
Round Plain Stem |
31 |
7/8 x 1-7/16 With 5/16 Cross Drilled Hole 29/32 Up |
Octagon Stem |
41B 42 |
3/4 x 2-1/8 With 3 Cross Drilled Holes 7/8 x 2 With 5/16 Cross Drilled Hole 1” Up |
Options For WC 5000 Series (Add option abbreviation to end of the caster part #) |
|
Integrated TLB | TLB |
Thread Guards (Use with Ball Bearings) | TG |
Riveted Axle (Factpry Order) | RA |
Pedal Wheel Brake (Avail. on 4" Only) | PWB |
Bearing Cover (For PPB, TRB) | BCG |
Zerk Axle | Z |
Quick Change Plate for T.P. | QCP-01-5200 (Zinc Bolt-On Type) |
Quick Change Plate for T.P. | QCP-01-5200-Unplated (Weld-On) |
Special Finishes (Factory Order) |
|
Polished Gold Finish | PGF |
Black Oxide | BO |
Nickel | N |
Chrome | CR |
