WC 6600 Series Medium Heavy Duty Casters |
|
Swivel # Replace ** with Fastener Code |
Rigid# Replace ** with Fastener Code |
|||||||
3" |
1-13/16" |
Duraplas (Polyolefin) |
Plain | 700 lbs. | 2-1/2" |
4-1/4" |
WC6630-**-XDP |
WC6630R-**-XDP |
3" |
1-13/16" |
Duraplas (Polyolefin) | Roller | 700 lbs. | 2-1/2" |
4-1/4" |
WC6630-**-XDP-RB | WC6630R-**-XDP-RB |
3" |
1-13/16" |
High Temp Glass Filled Nylon | Plain | 1000 lbs. | 2-1/2" |
4-1/4" |
WC6630-**-HTGFN | WC6630R-**-HTGFN |
3" |
1-13/16" |
High Temp Glass Filled Nylon | Roller | 1000 lbs. | 2-1/2" |
4-1/4" |
WC6630-**-HTGFN-RB | WC6630R-**-HTGFN-RB |
3" |
1-13/16" |
Yoke, 5/8" Axle/Nut | - | 1000 lbs. | 2-1/2" |
4-1/4" |
WC6630-**-YAN | WC6630R-**-YAN |
3-1/4" |
2" |
Phenolic | Roller | 700 lbs. |
4-1/4" |
4-1/4" |
WC6632-01-PHN |
WC6632R-01-PHN |
3-1/4" |
2" |
Yoke Only | - | 700 lbs. | 4-1/4" |
4-1/4" |
WC6632-01-Y | WC6632R-01-Y |
4" |
2" |
Duraplas (Polyolefin) | Roller | 700 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-XDP |
WC6640R-**-XDP |
4" |
2" |
Thermal Plastic Rubber | Roller | 300 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-TPR | WC6640R-**-TPR |
4" |
2" |
Phenolic | Roller | 800 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-PHN | WC6640R-**-PHN |
4" |
2" |
Polyurethane on Cast Iron | Roller | 800 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-PCI | WC6640R-**-PCI |
4" |
2" |
Polyurethane on Aluminum | Roller | 800 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-PAL | WC6640R-**-PAL |
4" |
2" |
Poly-U on Poly-O (Blue on Black) | Roller | 800 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-XLB | WC6640R-**-XLB |
4" |
2" |
Rubber on Cast Iron | Roller | 350 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-RCI | WC6640R-**-RCI |
4" |
2" |
Round Thermal Plastic Rubber | Roller | 300 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-RTP | WC6640R-**-RTP |
4" |
2" |
Steel (Cast Iron) | Roller | 900 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-STL | WC6640R-**-STL |
4" |
2" |
V-Groove (Cast Iron) | Roller | 900 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-VG | WC6640R-**-VG |
4" |
2" |
Solid Polyurethane | Roller | 800 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-SPU | WC6640R-**-SPU |
4" |
2" |
Solid Polyurethane | 6203 P.BB | 800 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-SPUP | WC6640R-**-SPUP |
4" |
2" |
Yoke Only | - | 900 lbs. | 3-9/16" |
5-5/8" |
WC6640-**-Y | WC6640R-**-Y |
4" |
2" |
Yoke Notched w/ Welded on on PSL | - | 900 lbs. | 3-9/16" |
5-5/8" |
WC6640-01-Y-PSL | N/A |
5" |
2" |
Duraplas / Poly-O |
Roller | 900 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-XDP |
WC6650R-**-XDP |
5" |
2" |
Thermal Plastic Rubber | Roller | 350 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-TPR | WC6650R-**-TPR |
5" |
2" |
Phenolic | Roller | 900 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-PHN | WC6650R-**-PHN |
5" |
2" |
Polyurethane on Cast Iron | Roller | 900 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-PCI | WC6650R-**-PCI |
5" |
2" |
Polyurethane on Aluminum | Roller | 900 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-PAL | WC6650R-**-PAL |
5" |
2" |
Poly-U on Poly-O (Blue on Black) | Roller | 900 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-XLB | WC6650R-**-XLB |
5" |
2" |
Rubber on Cast Iron | Roller | 450 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-RCI | WC6650R-**-RCI |
5" |
2" |
Round Thermal Plastic Rubber | Roller | 350 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-RTP | WC6650R-**-RTP |
5" |
2" |
Steel (Cast Iron) | Roller | 900 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-STL | WC6650R-**-STL |
5" |
2" |
V-Groove (Cast Iron) | Roller | 900 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-VG | WC6650R-**-VG |
5" |
2" |
Solid Polyurethane | Roller | 900 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-SPU | WC6650R-**-SPU |
5" |
2" |
Solid Polyurethane | 6203 P.BB | 900 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-SPUP | WC6650R-**-SPUP |
5" |
2" |
Yoke Only | - | 900 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-Y | WC6650R-**-Y |
5" |
2" |
Yoke Notched w/ Welded on on PSL | - | 900 lbs. | 4-1/4" |
6-1/2" |
WC6650-**-Y-PSL | N/A |
6" |
2" |
Balloon Cushion on Aluminum |
Ball | 400 lbs. |
4-1/2" |
7-1/2" |
WC6660-**-GRND |
WC6660R-**-GRND |
6" |
2" |
Polyolefin | Plain | 700 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-HDP-PB | WC6660R-**-HDP-PB |
6" |
2" |
Duraplas / Poly-O | 6203 P.BB | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-XDPP | WC6660R-**-XDPP |
6" |
2" |
Duraplas / Poly-O | Oilite | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-XDPO | WC6660R-**-XDPO |
6" |
2" |
Duraplas / Poly-O | Plain | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-XDP-PB | WC6660R-**-XDP-PB |
6" |
2" |
Duraplas / Poly-O | Roller | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-XDP | WC6660R-**-XDP |
6" |
2" |
Thermal Plastic Rubber | Roller | 410 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-TPR | WC6660R-**-TPR |
6" |
2" |
Phenolic | Roller | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-PHN | WC6660R-**-PHN |
6" |
2" |
Polyurethane on Cast Iron | Roller | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-PCI | WC6660R-**-PCI |
6" |
2" |
Polyurethane on Aluminum | Roller | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-PAL | WC6660R-**-PAL |
6" |
2" |
Poly-U on Poly-O (Blue on Black) | Roller | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-XLB | WC6660R-**-XLB |
6" |
2" |
Rubber on Cast Iron | Roller | 500 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-RCI | WC6660R-**-RCI |
6" |
2" |
Round Thermal Plastic Rubber | Roller | 410 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-RTP | WC6660R-**-RTP |
6" |
2" |
Steel (Cast Iron) | Roller | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-STL | WC6660R-**-STL |
6" |
2" |
V-Groove (Cast Iron) | Roller | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-VG | WC6660R-**-VG |
6" |
2" |
Solid Polyurethane | Roller | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-SPU | WC6660R-**-SPU |
6" |
2" |
Solid Polyurethane | 6203 P.BB | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-SPUP | WC6660R-**-SPUP |
6" |
2" |
Yoke Only | - | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-Y | WC6660R-**-Y |
6" |
2" |
Yoke Notched w/ Welded on on PSL | - | 900 lbs. | 4-1/2" |
7-1/2" |
WC6660-**-Y-PSL | N/A |
8" |
2" |
Balloon Cushion on Aluminum |
Ball |
450 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-GRND |
WC6680R-**-GRND |
8" |
2" |
Poly-U / Poly-O (Gray) | Roller | 900 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-XLG | WC6680R-**-XLG |
8" |
2" |
Poly-U / Poly-O (Blue) | Roller | 900 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-XLB | WC6680R-**-XLB |
8" |
2" |
Duraplas / Poly-O | Roller | 900 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-XDP | WC6680R-**-XDP |
8" |
2" |
Thermal Plastic Rubber | Roller | 500 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-TPR | WC6680R-**-TPR |
8" |
2" |
Phenolic | Roller | 900 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-PHN | WC6680R-**-PHN |
8" |
2" |
Poly-U / Cast-Iron | Roller | 900 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-PCI | WC6680R-**-PCI |
8" |
2" |
Poly-U / Aluminum | Roller | 900 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-PAL | WC6680R-**-PAL |
8" |
2" |
Rubber / Cast-Iron | Roller | 600 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-RCI | WC6680R-**-RCI |
8" |
2" |
Round Thermal Plastic Rubber | Roller | 500 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-RTP | WC6680R-**-RTP |
8" |
2" |
Steel | Roller | 900 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-STL | WC6680R-**-STL |
8" |
2" |
V-Groove | Roller | 900 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-VG | WC6680R-**-VG |
8" |
2" |
Solid Poly-U | Roller | 900 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-SPU | WC6680R-**-SPU |
8" |
2" |
Solid Poly-U | 6203-P.BB | 900 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-SPUP | WC6680R-**-SPUP |
8" |
2" |
Yoke Only | - | 900 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-Y | WC6680R-**-Y |
8" |
2" |
Yoke Notched w/ Welded on on PSL | - | 900 lbs. | 6-1/2" |
9-1/2" |
WC6680-**-Y-PSL | N/A |

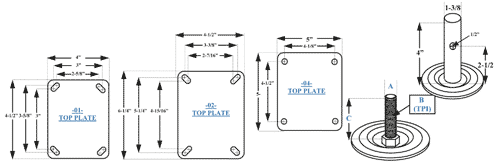

Fastener Type |
Code |
Size |
Top Plate |
01 |
Overall Size: 4" x 4-1/2" Bolt Hole Pattern: 2-5/8" x 3-5/8" Slotted to 3" x 3" Attaching Bolt Size: 3/8" |
Top Plate |
02 |
Overall Size: 4-1/2" x 6-1/4" Bolt Hole Pattern: 2-7/16" x 4-15/16" Slotted to 3-3/8" x 5-1/4" Attaching Bolt Size: 3/8" |
Top Plate |
04 |
Overall Size: 5" x 5-1/2" Bolt Hole Pattern: 4-1/8" x 4-1/2" Attaching Bolt Size: 7/16" |
Threaded Stem |
21 22 24 25 |
A-B x C 3/4-10" x 1-31/32" 3/4-10" x 1-3/4" 5/8-11" x 1-3/4" (Standard on 3” [6630]) 1/2-13" x 1-3/4" (Standard on 3” [6630]) |
Plain Round |
31 |
1-3/8" x 4" With 1/2" Cross Drilled Hole 2-1/2” Up Centered |
Bearing Options Add the desired bearing option abbreviation after the wheel designator Example: WC6660-01-XDP-BB |
|
Delrin Bearings 3/4” I.D. w/ Steel Spanner to 1/2” | DBO |
Delrin Bearings 3/4” I.D. w/ Delrin Spanner to 1/2” | DBD |
Delrin Bearings 1/2” I.D. | DB |
Roller Bearings with all
metal components (A must for high-temp applications) |
AMC |
Sealed Precision Ball Bearings | BB |
Options For WC 6600 Series (Add option abbreviation to end of the caster part #) |
|
Integrated TLB | TLB |
Integrated TLB Works on Rigids! | TLB |
Position Lock | PSL |
Thread Guards | TG |
Thumb Screw Brake | TSB |
Raceway Seals | SL |
Quick Change Plate "Tool-Less" | QCP-01-6400 (Zinc Bolt-On Type) |
Quick Change Plate "Tool-Less" | QCP-01-6400-Unplated (Weld-On) |
Special Finishes (Factory Order) |
|
Polished Gold Finish | PGF |
Black Oxide | BO |
Nickel | N |
Chrome | CR |
