WC 4900 Series Light Duty Casters

  • Capacity to 250 lbs.
  • 3/8” axle and nut used instead of rivet (5/16 axle available upon request)
  • Zinc plated
  • Sealed upper raceway helps keep out dirt and dust
  • Case hardened double ball raceways provide extra capacity & durability
  • Applications: Shopping carts, miscellaneous carts and racks, food service & institutional equipment, etc.

Swivel #
Replace ** with
Fastener Code

5"
1-1/4"
 Soft Rubber Nylon 200 lbs.
3-7/8"
5-15/16"
 WC 4950-**-SR
5"
1-1/4"
 Soft Rubber Ball 200 lbs.
3-7/8"
5-15/16"
 WC 4950-**-SRB
5"
1-1/4"
 Hard Rubber Nylon 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-HR
5"
1-1/4"
 Hard Rubber Ball 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-HRB
5"
1-1/4"
 Polyolefin Plain 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-HDP
5"
1-1/4"
 Poly-U / Poly-O (Red on Gray) Ball 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-PPBR
5"
1-1/4"
 Poly-U / Poly-O (Gray on Beige) Ball 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-PPBG
5"
1-1/4"
 Poly-U / Poly-O (Black on Gray) Ball 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-PPBK
5"
1-1/4"
 Poly-U / Poly-O (Blue on Gray) Ball 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-PPBL
5"
1-1/4"
 Poly-U / Poly-O (Gray on Beige) Plain 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-PPPG
5"
1-1/4"
 Thermal Plastic Rubber Ball 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-TRB
5"
1-1/4"
 Thermal Plastic Rubber Plain 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-TRP
5"
1-1/4"
 Round Thermal Plastic Rubber Graphite 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-RTPO
5"
1-1/4"
 Rubber on Aluminum Annular 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-RAL
5"
1-1/4"
 Polyurethane on Aluminum Annular 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-PAL
5"
1-1/4"
 Yoke Axle & Nut - 250 lbs.
3-7/8"
5-15/16"
 WC 4950-**-YAN

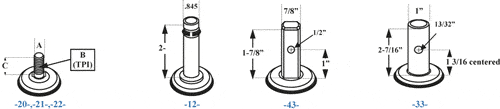

Fastener Type
Code
Size

Grip Ring Stem
12
.845 x 2-3/16

Threaded Stem with Keylock
20
21
22
1/2-13 x 3/4
1/2-13 x 9/16
1/2-13 x 7/8

Handtruck Stem
33
1 x 2-7/16 With a 13/32 Cross Drilled Hole, 1” Up

Octagon Stem
43
Octagon Stem



Options For WC 4900 Series
(Add option abbreviation to end of the caster part #)

Pedal Wheel PWB
Integrated TLB TLB
Thread Guards (Use with Ball Bearings) TG
Bearing Cover (For PPB, TRB) BCG
