WC 4000 Series Light Duty Casters |
|
Swivel # Replace ** with Fastener Code |
Rigid# Replace ** with Fastener Code |
|||||||
2" |
15/16" |
Soft Rubber | Nylon | 90 lbs. | 2" |
2-1/2" |
WC4020-01-SR | WC4020R-01-SR |
2" |
15/16" |
Hard Rubber | Nylon | 150 lbs. | 2" |
2-1/2" |
WC4020-01-HR | WC4020R-01-HR |
2" |
15/16" |
Steel (Cast Iron) | Plain | 150 lbs. | 2" |
2-1/2" |
WC4020-01-STL | WC4020R-01-STL |
2" |
15/16" |
Polyolefin | Plain | 150 lbs. | 2" |
2-1/2" |
WC4020-01-LDP | WC4020R-01-LDP |
2" |
15/16" |
Poly-U / Poly-O (Gray on Beige) | Plain | 120 lbs. | 2" |
2-1/2" |
WC4020-01-PPPG | WC4020R-01-PPPG |
2" |
15/16" |
Yoke, Axle & Nut | - | 150 lbs. | 2" |
2-1/2" |
WC4020-01-YAN | WC4020R-01-YAN |
2-1/2" |
1-1/8" |
Soft Rubber | Nylon | 120 lbs. | 2-3/8" |
3-1/8" |
WC4025-01-SR | WC4025R-01-SR |
2-1/2" |
1-1/8" |
Hard Rubber | Nylon | 160 lbs. | 2-3/8" |
3-1/8" |
WC4025-01-HR | WC4025R-01-HR |
2-1/2" |
1-1/8" |
Light Duty Polyolefin | Plain | 160 lbs. | 2-3/8" |
3-1/8" |
WC4025-01-LDP | WC4025R-01-LDP |
2-1/2" |
1-1/8" |
Heavy Duty Polyolefin | Plain | 200 lbs. | 2-3/8" |
3-1/8" |
WC4025-01-HDP | WC4025R-01-HDP |
2-1/2" |
1-1/8" |
Poly-U on Poly-U | Oilless | 160 lbs. | 2-3/8" |
3-1/8" |
WC4025-01-PPOR | WC4025R-01-PPOR |
2-1/2" |
1-1/8" |
Thermal Plastic Rubber | Oilless | 150 lbs. | 2-3/8" |
3-1/8" |
WC4025-01-TRO | WC4025R-01-TRO |
2-1/2" |
1-1/8" |
Steel (Cast Iron) | Plain | 200 lbs. | 2-3/8" |
3-1/8" |
WC4025-01-STL | WC4025R-01-STL |
2-1/2" |
1-1/8" |
Yoke Axle & Nut | - | 200 lbs. | 2-3/8" |
3-1/8" |
WC4025-01-YAN | WC4025R-01-YAN |
3" |
1-1/4" |
Solid Polyurethane | Delrin | 250 lbs. | 3" |
3-3/4" |
WC4030-01-SPU | WC4030R-01-SPU |
3" |
1-1/4" |
Gray Soft Rubber | Nylon | 150 lbs. | 3" |
3-3/4" |
WC4030-01-GSR | WC4030R-01-GSR |
3" |
1-1/4" |
Soft Rubber | Nylon | 150 lbs. | 3" |
3-3/4" |
WC4030-01-SR | WC4030R-01-SR |
3" |
1-1/4" |
Soft Rubber | Ball | 150 lbs. | 3" |
3-3/4" |
WC4030-01-SRB | WC4030R-01-SRB |
3" |
1-1/4" |
Hard Rubber | Nylon | 220 lbs. | 3" |
3-3/4" |
WC4030-01-HR | WC4030R-01-HR |
3" |
1-1/4" |
Hard Rubber | Ball | 220 lbs. | 3" |
3-3/4" |
WC4030-01-HRB | WC4030R-01-HRB |
3" |
1-1/4" |
Light Duty Polyolefin | Plain | 250 lbs. | 3" |
3-3/4" |
WC4030-01-LDP | WC4030R-01-LDP |
3" |
1-1/4" |
Heavy Duty Polyolefin | Plain | 250 lbs. | 3" |
3-3/4" |
WC4030-01-HDP | WC4030R-01-HDP |
3" |
1-1/4" |
Heavy Duty Polyolefin | Ball | 250 lbs. | 3" |
3-3/4" |
WC4030-01-HDPB | WC4030R-01-HDPB |
3" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Ball | 250 lbs. | 3" |
3-3/4" |
WC4030-01-PPBG | WC4030R-01-PPBG |
3" |
1-1/4" |
Poly-U / Poly-O (Blue on Gray) | Ball | 250 lbs. | 3" |
3-3/4" |
WC4030-01-PPBL | WC4030R-01-PPBL |
3" |
1-1/4" |
Poly-U / Poly-O (Gray on Beige) | Plain | 250 lbs. | 3" |
3-3/4" |
WC4030-01-PPPG | WC4030R-01-PPPG |
3" |
1-1/4" |
Phenolic | STL DSW | 250 lbs. | 3" |
3-3/4" |
WC4030-01-PHN | WC4030R-01-PHN |
3" |
1-1/4" |
Thermal Plastic Rubber | Plain | 165 lbs. | 3" |
3-3/4" |
WC4030-01-TRP | WC4030R-01-TRP |
3" |
1-1/4" |
Thermal Plastic Rubber | Ball | 165 lbs. | 3" |
3-3/4" |
WC4030-01-TRB | WC4030R-01-TRB |
3" |
1-1/4" |
Steel (Cast Iron) | Plain | 250 lbs. | 3" |
3-3/4" |
WC4030-01-STL | WC4030R-01-STL |
3" |
1-1/4" |
Rubber on Aluminum | Annular | 250 lbs. | 3" |
3-3/4" |
WC4030-01-RAL | WC4030R-01-RAL |
3" |
1-1/4" |
Polyurethane on Aluminum | Annular | 250 lbs. | 3" |
3-3/4" |
WC4030-01-PAL | WC4030R-01-PAL |
3" |
1-1/4" |
Yoke Axle & Nut | - | 250 lbs. | 3" |
3-3/4" |
WC4030-01-YAN | WC4030R-01-YAN |
4" |
1-1/2" |
Soft Rubber | Nylon | 225 lbs. | 3-3/8" |
5" |
WC4040-01-SR | WC4040R-01-SR |
4" |
1-1/2" |
Hard Rubber | Nylon | 300 lbs. | 3-3/8" |
5" |
WC4040-01-HR | WC4040R-01-HR |
4" |
1-1/2" |
Poly-U / Poly-O (Red-Orange/Gray) | STL Span | 300 lbs. | 3-3/8" |
5" |
WC4040-01-XLOGO | WC4040R-01-XLOGO |
4" |
1-1/2" |
Steel (Cast Iron) | STL Span | 300 lbs. | 3-3/8" |
5" |
WC4040-01-STL | WC4040R-01-STL |
4" |
1-1/2" |
Polyolefin | STL Span | 300 lbs. | 3-3/8" |
5" |
WC4040-01-XDPO | WC4040R-01-XDPO |
4" |
1-1/2" |
Yoke Axle & Nut | - | 300 lbs. | 3-3/8" |
5" |
WC4040-01-YAN | WC4040R-01-YAN |
Axle size for 2” wheel is 1/4”. Axle size for 2-1/2” wheel is 5/16”. Axle size for 3” & 4” wheel is 3/8”
Fasteners For WC4000 Series |
|||
Wheel Diameter |
Overall Size |
Bolt Hole Pattern |
Bolt Size |
SWIVEL: 2 2-1/2 3 4 |
1-7/8 x 2-9/16 2-3/4 x 3-7/8 3-1/8 x 4-1/8 4 x 5-1/8 |
15/16 x 2-1/8 1-3/4 x 3 2-3/8 x 3-3/8 SLOTTED TO 3-7/16 3 x 4 |
1/4 5/16 5/16 3/8 |
RIGID: 2 2-1/2 3 4 |
1-1/2 x 2-21/32 2-1/4 x 4-7/16 2-1/2 x 4-15/16 3-1/8 x 6-1/4 |
15/16 x 2-1/8 1-1/16 x 3-1/2 1-3/16 x 4 1-3/4 x 5 |
1/4 5/16 5/16 3/8 |

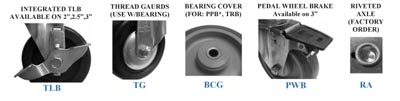

Options For WC 4000 Series (Add option abbreviation to end of the caster part #) |
|
Integrated TLB (Avail. on 2", 2.5", 3 ") | TLB |
Thread Guards (Use with Ball Bearing) | TG |
Bearing Cover (For PPB, TRB) | BCG |
Pedal Wheel Brake (Avail. on 3 ") | PWB |
Riveted Axle (Factory Order) | RA |
Special Finishes (Factory Order) |
|
Polished Gold Finish | PGF |
Black Oxide | BO |
Nickel | N |
Chrome | CR |
