WC 3800 Series Light Duty Casters |
|
Swivel # Replace ** with Fastener Code |
Rigid# Replace ** with Fastener Code |
|||||||
2" |
1" |
Soft Rubber | Nylon | 110 lbs. | 2" |
2-7/8" |
WC3820-**-SR | WC3820R-**-SR |
2" |
1" |
Hard Rubber | Nylon | 160 lbs. | 2" |
2-7/8" |
WC3820-**-HR | WC3820R-**-HR |
2" |
1" |
Polyolefin | Plain | 160 lbs. | 2" |
2-7/8" |
WC3820-**-HDP | WC3820R-**-HDP |
2" |
1" |
Steel | Plain | 160 lbs. | 2" |
2-7/8" |
WC3820-**-STL | WC3820R-**-STL |
2" |
1" |
Thermal Plastic Rubber | Plain | 120 lbs. | 2" |
2-7/8" |
WC3820-**-TRP | WC3820R-**-TRP |
2" |
1" |
Yoke Axle & Nut | - | 160 lbs. | 2" |
2-7/8" |
WC3820-**-YAN | WC3820R-**-YAN |
2-1/2" |
1-1/8" |
Soft Rubber | Nylon | 120 lbs. | 2-3/8" |
3-3/8" |
WC3825-**-SR | WC3825R-**-SR |
2-1/2" |
1-1/8" |
Hard Rubber | Nylon | 160 lbs. | 2-3/8" |
3-3/8" |
WC3825-**-HR | WC3825R-**-HR |
2-1/2" |
1-1/8" |
Heavy Duty Polyolefin | Plain | 200 lbs. | 2-3/8" |
3-3/8" |
WC3825-**-HDP | WC3825R-**-HDP |
2-1/2" |
1-1/8" |
Poly-U on Poly-U | Oilless | 160 lbs. | 2-3/8" |
3-3/8" |
WC3825-**-PPOR | WC3825R-**-PPOR |
2-1/2" |
1-1/8" |
Thermal Plastic Rubber | Oilless | 150 lbs. | 2-3/8" |
3-3/8" |
WC3825-**-TRO | WC3825R-**-TRO |
2-1/2" |
1-1/8" |
Steel | Plain | 200 lbs. | 2-3/8" |
3-3/8" |
WC3825-**-STL | WC3825R-**-STL |
2-1/2" |
1-1/8" |
Yoke Axle & Nut | - | 200 lbs. | 2-3/8" |
3-3/8" |
WC3825-**-YAN | WC3825R-**-YAN |
3" |
1-1/4" |
Soft Rubber | Nylon | 150 lbs. | 2-3/4" |
3-3/4" |
WC3830-**-SR | WC3830R-**-SR |
3" |
1-1/4" |
Hard Rubber | Nylon | 220 lbs. | 2-3/4" |
3-3/4" |
WC3830-**-HR | WC3830R-**-HR |
3" |
1-1/4" |
Polyolefin | Plain | 250 lbs. | 2-3/4" |
3-3/4" |
WC3830-**-LDP | WC3830R-**-LDP |
3" |
1-1/4" |
Poly-O on Poly-U (Gray/Beige) | Oilless | 250 lbs. | 2-3/4" |
3-3/4" |
WC3830-**-PPOG | WC3830R-**-PPOG |
3" |
1-1/4" |
Thermal Plastic Rubber | Oilless | 210 lbs. | 2-3/4" |
3-3/4" |
WC3830-**-TRO | WC3830R-**-TRO |
3" |
1-1/4" |
Phenolic | Delrin | 250 lbs. | 2-3/4" |
3-3/4" |
WC3830-**-PHN | WC3830R-**-PHN |
3" |
1-1/4" |
Yoke Axle & Nut | - | 250 lbs. | 2-3/4" |
3-3/4" |
WC3830-**-YAN | WC3830R-**-YAN |
4" |
1-1/4" |
Soft Rubber | Nylon | 170 lbs. | 3-1/4" |
4-15/16" |
WC3840-**-SR | WC3840R-**-SR |
4" |
1-1/4" |
Soft Rubber | Ball | 170 lbs. | 3-1/4" |
4-15/16" |
WC3840-**-SRB | WC3840R-**-SRB |
4" |
1-1/4" |
Hard Rubber | Nylon | 250 lbs. | 3-1/4" |
4-15/16" |
WC3840-**-HR | WC3840R-**-HR |
4" |
1-1/4" |
Hard Rubber | Ball | 250 lbs. | 3-1/4" |
4-15/16" |
WC3840-**-HRB | WC3840R-**-HRB |
4" |
1-1/4" |
Polyolefin | Plain | 250 lbs. | 3-1/4" |
4-15/16" |
WC3840-**-HDP | WC3840R-**-HDP |
4" |
1-1/4" |
Poly-U on Poly-O (Gray/Beige) | Plain | 250 lbs. | 3-1/4" |
4-15/16" |
WC3840-**-PPPG | WC3840R**-PPPG |
4" |
1-1/4" |
Poly-U on Poly-O (Gray/Beige) | Ball | 250 lbs. | 3-1/4" |
4-15/16" |
WC3840-**-PPBG | WC3840R-**-PPBG |
4" |
1-1/4" |
Thermal Plastic Rubber | Plain | 250 lbs. | 3-1/4" |
4-15/16" |
WC3840-**-TRP | WC3840R-**-TRP |
4" |
1-1/4" |
Thermal Plastic Rubber | Ball | 250 lbs. | 3-1/4" |
4-15/16" |
WC3840-**-TRB | WC3840R-**-TRB |
4" |
1-1/4" |
Phenolic | STL DSW | 250 lbs. | 3-1/4" |
4-15/16" |
WC3840-**-PHN | WC3840R-**-PHN |
4" |
1-1/4" |
Yoke Axle & Nut | - | 250 lbs. | 3-1/4" |
4-15/16" |
WC3840-**-YAN | WC3840R-**-YAN |
5" |
1-1/4" |
Soft Rubber | Nylon | 200 lbs. | 3-3/4" |
5-3/4" |
WC3850-**-SR | WC3850R-**-SR |
5" |
1-1/4" |
Soft Rubber | Ball | 200 lbs. | 3-3/4" |
5-3/4" |
WC3850-**-SRB | WC3850R-**-SRB |
5" |
1-1/4" |
Hard Rubber | Nylon | 250 lbs. | 3-3/4" |
5-3/4" |
WC3850-**-HR | WC3850R-**-HR |
5" |
1-1/4" |
Hard Rubber | Ball | 250 lbs. | 3-3/4" |
5-3/4" |
WC3850-**-HRB | WC3850R-**-HRB |
5" |
1-1/4" |
Polyolefin | Plain | 250 lbs. | 3-3/4" |
5-3/4" |
WC3850-**-HDP | WC3850R-**-HDP |
5" |
1-1/4" |
Poly-U on Poly-O (Gray/Beige) | Plain | 250 lbs. | 3-3/4" |
5-3/4" |
WC3850-**-PPPG | WC3850R-**-PPPG |
5" |
1-1/4" |
Poly-U on Poly-O (Gray/Beige) | Ball | 250 lbs. | 3-3/4" |
5-3/4" |
WC3850-**-PPBG | WC3850R-**-PPBG |
5" |
1-1/4" |
Thermal Plastic Rubber | Plain | 250 lbs. | 3-3/4" |
5-3/4" |
WC3850-**-TRP | WC3850R-**-TRP |
5" |
1-1/4" |
Thermal Plastic Rubber | Ball | 250 lbs. | 3-3/4" |
5-3/4" |
WC3850-**-TRB | WC3850R-**-TRB |
5" |
1-1/4" |
Round Thermal Plastic Rubber | Graphite | 250 lbs. | 3-3/4" |
5-3/4" |
WC3850-**-RTPO | WC3850R-**-RTPO |
5" |
1-1/4" |
Phenolic | STL DSW | 250 lbs. | 3-3/4" |
5-3/4" |
WC3850-**-PHN | WC3850R-**-PHN |
5" |
1-1/4" |
Yoke Axle & Nut | - | 250 lbs. | 3-3/4" |
5-3/4" |
WC3850-**-YAN | WC3850R-**-YAN |
Axle size for, 2”, 2-1/2” and 3” wheels is 5/16”. Axle size for 4” and 5” wheels is 3/8”.

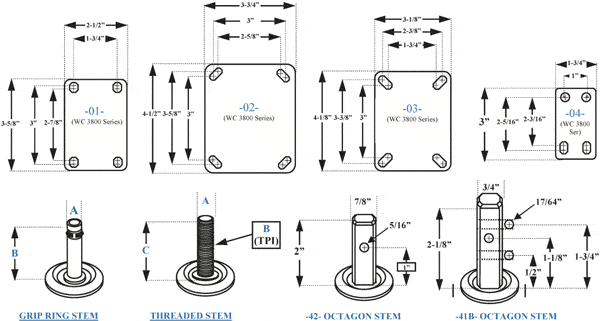

Fastener Type |
Code |
Size |
Top Plate |
01 |
Overall Size: 2-1/2 x 3-3/4 Bolt Hole Pattern: 1-3/4 x 2-7/8 Slotted to 3 Attaching Bolt Size: 5/16 |
Top Plate |
02 |
Overall Size: 3-3/4 x 4-1/2 Bolt Hole Pattern: 2-5/8 x 3-5/8 Slotted to 3 x 3 Attaching Bolt Size: 3/8 |
Top Plate |
03 |
Overall Size: 3-1/8 x 4-1/8 Bolt Hole Pattern:1-3/4 x 3 Slotted to 2-3/8 x 3-3/8 Attaching Bolt Size: 3/8 |
Top Plate |
04 |
Overall: 1-3/4 x 3 Hole Spacing: 1 x 2-3/16 Slotted to 2-5/16 Attaching Bolt Size: 5/16 |
Grip Ring Stem |
11 12 17 |
A x B 7/16 x 1-1/2 .845 x 2-3/16 7/16 x 2 |
Threaded Stem |
21 22 24 26N |
A-B x C 1/2-13 x 1 1/2-13 x 1-1/2 3/8-16 x 1-1/4 1/2-13 x 2-13/16 |
Octagon Stem |
41B 42 |
3/4 x 2-1/8 With 3 Cross Drilled Holes 7/8 x 2 With 5/16” Cross Drilled Hole 1” Up |

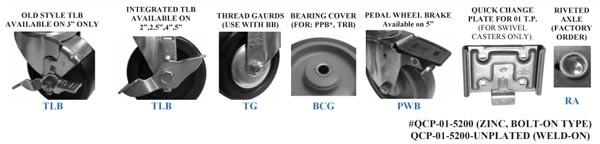

Options For WC 3800 Series (Add option abbreviation to end of the caster part #) |
|
Old Style TLB (Avail. on 3" Only) | TLB |
Integrated TLB (Avail. on 2", 2.5", 4", 5") | TLB |
Thread Guards (Use with BB) | TG |
Bearing Cover (For PPB, TRB) | BCG |
Pedal Wheel Brake (Avail. on 5") | PWB |
Quick Change Plate for 01 T.P. (Swivel Only) | |
Riveted Axle (Factory Order) | RA |
Special Finishes (Factory Order) |
|
Polished Gold Finish | PGF |
Black Oxide | BO |
Nickel | N |
Chrome | CR |
