WC 3600 Series Light Duty Casters |
|
Swivel # Replace ** with Fastener Code |
Rigid# Replace ** with Fastener Code |
|||||||
3" |
1" |
Soft Rubber | Nylon | 110 lbs. | 2-13/16" |
3-3/4" |
WC3630-**-SR | WC3630R-**-SR |
3" |
1" |
Hard Rubber | Nylon | 130 lbs. | 2-13/16" |
3-3/4" |
WC3630-**-HR | WC3630R-**-HR |
3" |
1" |
Polyolefin | Plain | 175 lbs. | 2-13/16" |
3-3/4" |
WC3630-**-LDP | WC3630R-**-LDP |
3" |
1" |
Poly-U on Poly-O (Gray/Beige) | Plain | 175 lbs. | 2-13/16" |
3-3/4" |
WC3630-**-PPPG | WC3630R-**-PPPG |
3" |
1" |
Thermal Plastic Rubber | Plain | 175 lbs. | 2-13/16" |
3-3/4" |
WC3630-**-TRP | WC3630R-**-TRP |
3" |
1" |
Yoke Axle & Nut | - | 230 lbs. | 2-13/16" |
3-3/4" |
WC3630-**-YAN | WC3630R-**-YAN |
4" |
1" |
Soft Rubber | Nylon | 130 lbs. | 3-1/4" |
4-3/4" |
WC3640-**-SR | WC3640R-**-SR |
4" |
1" |
Hard Rubber | Nylon | 175 lbs. | 3-1/4" |
4-3/4" |
WC3640-**-HR | WC3640R-**-HR |
4" |
1" |
Polyolefin | Oilite | 220 lbs. | 3-1/4" |
4-3/4" |
WC3640-**-HDPO | WC3640R-**-HDPO |
4" |
1" |
Poly-U on Poly-O (Gray/Beige) | Plain | 220 lbs. | 3-1/4" |
4-3/4" |
WC3640-**-PPPG | WC3640R-**-PPPG |
4" |
1" |
Thermal Plastic Rubber | Plain | 190 lbs. | 3-1/4" |
4-3/4" |
WC3640-**-TRP | WC3640R-**-TRP |
4" |
1" |
Yoke Axle & Nut | - | 230 lbs. | 3-1/4" |
4-3/4" |
WC3640-**-YAN | WC3640R-**-YAN |
5" |
1" |
Soft Rubber | Nylon | 150 lbs. | 3-1/2" |
5-3/4" |
WC3650-**-SR | WC3650R-**-SR |
5" |
1" |
Hard Rubber | Nylon | 220 lbs. | 3-1/2" |
5-3/4" |
WC3650-**-HR | WC3650R-**-HR |
5" |
1" |
Polyolefin | Oilite | 230 lbs. | 3-1/2" |
5-3/4" |
WC3650-**-HDPO | WC3650R-**-HDPO |
5" |
1" |
Poly-U on Poly-O (Gray/Beige) | Plain | 220 lbs. | 3-1/2" |
5-3/4" |
WC3650-**-PPPG | WC3650R-**-PPPG |
5" |
1" |
Thermal Plastic Rubber | Plain | 200 lbs. | 3-1/2" |
5-3/4" |
WC3650-**-TRP | WC3650R-**-TRP |
5" |
1" |
Yoke Axle & Nut | - | 230 lbs. | 3-1/2" |
5-3/4" |
WC3650-**-YAN | WC3650R-**-YAN |

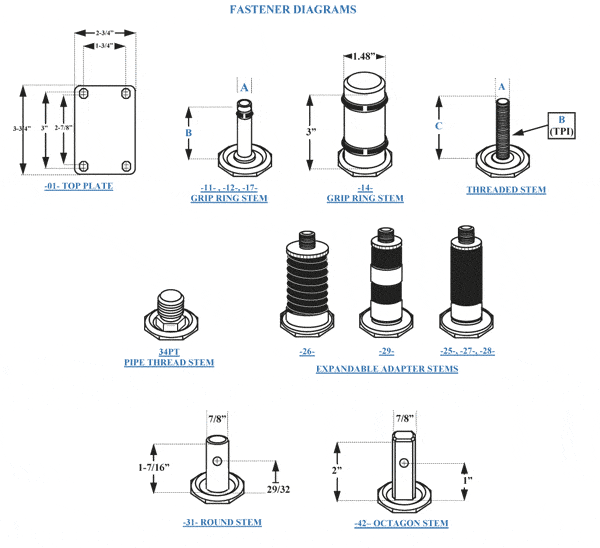

Fastener Type |
Code |
Size |
Top Plate |
01 |
OVERALL: 2-3/4 x 3-3/4 HOLE SPACING: 1-3/4 x 2-7/8 SLOTTED TO 3 ATTACHING BOLT SIZE: 5/16 |
Grip Ring Stem |
11 12 14 17 |
A x B 7/16 x 1-1/2 .845 x 2-3/16 1.48 x 3 WITH TWO GRIP RINGS (TOP & BOTTOM) 7/16 x 2 |
Threaded stem (With Hex Raceway) Pipe Thread(NPT) |
21 22 23 24 26N 34PT |
A-B x C 1/2-13 x 1-1/2 7/16-14 x 2-1/4 1/2-13 x 1 1/2-13 x 2-1/4 1/2-13 x 2-13/16 Threaded For 3/4” Pipe Coupling x 3/4” Long |
Expandable Adapter Stems |
25 26 27 28 29 |
For 1-3/8 I.D. 1-1/2 O.D. Tubing For 1-1/2” I.D. 1-5/8 O.D. Tubing For 7/8” I.D. 1” O.D. Tubing For 1” I.D. 1-1/8” O.D. Tubing For 1-1/8” I.D. 1-1/4 O.D. Tubing |
Round Plain Stem |
31 |
7/8 x 1-7/16 With 5/16 Cross Drilled Hole 29/32 Up |
Octagon |
42 |
7/8 x 2 With 5/16 Cross Drilled Hole 1” Up |
Round Stem for Adjustable Leg |
61 62 |
1-1/4” Diameter x 4” Long Round Stem with a 3/4” Threaded Hole 3-3/4” Deep 1-1/4” Diameter x 2” Long Round Stem with a 3/4” Threaded Hole 1-1/4” Deep |
Options For WC 3600 Series (Add option abbreviation to end of the caster part #) |
|
Top Lock Brake | TLB |
Riveted Axle (Factory Order) | RA |
Special Finishes (Factory Order) |
|
Polished Gold Finish | PGF |
Black Oxide | BO |
Nickel | N |
Chrome | CR |
