WC 3400 Series Light Duty Casters

  • Capacity to 220 lbs.
  • Case hardened double ball raceways provide
    extra capacity & durability
  • Unique, 1-3/4” wide x 3” long (-01–) Top plate fastener, was developed to be able to be attached to a 2” square tube without protruding past the ends of the tube
  • Applications: Food service & institutional equipment, light-duty service carts (for hotels, resorts, hospitals, and restaurants),& light duty stock carts, displays, etc.

Swivel #
Replace ** with
Fastener Code		 Rigid#
Replace ** with
Fastener Code

3"
1"
 Soft Rubber Nylon 110 lbs.
2-13/16"
3-7/8"
 WC3430-**-SR WC3430R-**-SR
3"
1"
 Hard Rubber Nylon 130 lbs.
2-13/16"
3-7/8"
 WC3430-**-HR WC3430R-**-HR
3"
1"
 Polyolefin Plain 175 lbs.
2-13/16"
3-7/8"
 WC3430-**-LDP WC3430R-**-LDP
3"
1"
 Poly-U on Poly-O (Gray/Beige) Plain 175 lbs.
2-13/16"
3-7/8"
 WC3430-**-PPPG WC3430R-**-PPPG
3"
1"
 Thermal Plastic Rubber Plain 175 lbs.
2-13/16"
3-7/8"
 WC3430-**-TRP WC3430R-**-TRP
3"
1"
 Yoke Axle & Nut - 220 lbs.
2-13/16"
3-7/8"
 WC3430-**-YAN WC3430R-**-YAN
4"
1"
 Soft Rubber Nylon 130 lbs.
3-1/4"
4-7/8"
 WC3440-**-SR WC3440R-**-SR
4"
1"
 Hard Rubber Nylon 175 lbs.
3-1/4"
4-7/8"
 WC3440-**-HR WC3440R-**-HR
4"
1"
 Polyolefin Oilite 220 lbs.
3-1/4"
4-7/8"
 WC3440-**-HDPO WC3440R-**-HDPO
4"
1"
 Poly-U on Poly-O (Gray/Beige) Plain 220 lbs.
3-1/4"
4-7/8"
 WC3440-**-PPPG WC3440R-**-PPPG
4"
1"
 Thermal Plastic Rubber Plain 190 lbs.
3-1/4"
4-7/8"
 WC3440-**-TRP WC3440R-**-TRP
4"
1"
 Yoke Axle & Nut - 220 lbs.
3-1/4"
4-7/8"
 WC3440-**-YAN WC3440R-**-YAN
5"
1"
 Soft Rubber Nylon 150 lbs.
3-13/16"
5-7/8"
 WC3450-**-SR WC3450R-**-SR
5"
1"
 Hard Rubber Nylon 220 lbs.
3-13/16"
5-7/8"
 WC3450-**-HR WC3450R-**-HR
5"
1"
 Polyolefin Oilite 220 lbs.
3-13/16"
5-7/8"
 WC3450-**-HDPO WC3450R-**-HDPO
5"
1"
 Poly-U on Poly-O (Gray/Beige) Plain 220 lbs.
3-13/16"
5-7/8"
 WC3450-**-PPPG WC3450R-**-PPPG
5"
1"
 Thermal Plastic Rubber Plain 200 lbs.
3-13/16"
5-7/8"
 WC3450-**-TRP WC3450R-**-TRP
5"
1"
 Yoke Axle & Nut - 220 lbs.
3-13/16"
5-7/8"
 WC3450-**-YAN WC3450R-**-YAN

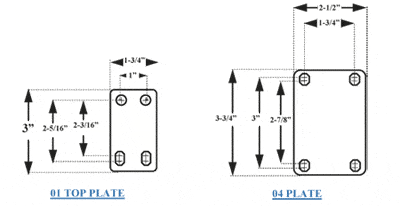

Fastener Type
Code
Size

Top Plate
01
Overall: 1-3/4" x 3"
Hole Spacing: 1" x 2-3/16" Slotted to 2-5/16"
Attaching Bolt Size: 5/16"

Top Plate
04
Overall: 2-1/2" x 3-3/4"
Hole Spacing: 1-3/4" x 2-7/8" Slotted to 3"
Attaching Bolt Size: 5/16"

Options For WC 3400 Series
(Add option abbreviation to end of the caster part #)

Top Lock Brake TLB

Special Finishes
(Factory Order)

Polished Gold Finish PGF
Black Oxide BO
Nickel N
Chrome CR
