WC 3000 Series Light Duty Casters

  • Capacity to 120 lbs.
  • Double ball raceway
  • Variety of fastenings
  • Integrated top-lock brakes provide a sure lock
  • L21 stem fastener for rolling ladders (old 3100 series)
  • Applications: Mobile medical equipment, light weight institutional & food service equipment, office equipment, chairs, displays, stands, automobile creepers, mop buckets, rolling ladders, etc.


Swivel #
Replace ** with
Fastener Code

2"
7/8
 Soft Rubber Nylon
100 lbs.
1-13/16"
 WC3020-**-SR
2"
7/8"
 Hard Rubber Nylon
100 lbs.
1-13/16"
 WC3020-**-HR
2"
7/8"
 Nylon Plain
100 lbs.
1-13/16"
 WC3020-**-NY
2"
7/8"
 Polyolefin Plain
100 lbs.
1-13/16"
 WC3020-**-LDP
2"
7/8"
 Poly-U on Poly-O (Gray/Beige) Plain
100 lbs.
1-13/16"
 WC3020-**-PPPG
2"
7/8"
 Thermal Plastic Rubber Plain
100 lbs.
1-13/16"
 WC3020-**-TRP
2-1/2"
13/16"
 Soft Rubber Nylon
105 lbs.
2-1/16"
 WC3025-**-SR
2-1/2"
13/16"
 Hard Rubber Nylon
110 lbs.
2-1/16"
 WC3025-**-HR
2-1/2"
13/16"
 Polyolefin Plain
110 lbs.
2-1/16"
 WC3025-**-LDP
2-1/2"
13/16"
 Poly-U on Poly-O (Gray/Beige) Plain
110 lbs.
2-1/16"
 WC3025-**-PPPG
2-1/2"
13/16"
 Thermal Plastic Rubber Plain
105 lbs.
2-1/16"
 WC3025-**-TRP
3"
13/16"
 Soft Rubber Nylon
110 lbs.
2-3/8"
 WC3030-**-SR
3"
13/16"
 Hard Rubber Nylon
120 lbs.
2-3/8"
 WC3030-**-HR
3"
13/16"
 Polyolefin Plain
120 lbs.
2-3/8"
 WC3030-**-LDP
3"
13/16"
 Poly-U on Poly-O (Gray/Beige) Plain
120 lbs.
2-3/8"
 WC3030-**-PPPG
3"
13/16"
 Thermal Plastic Rubber Plain
110 lbs.
2-3/8"
 WC3030-**-TRP

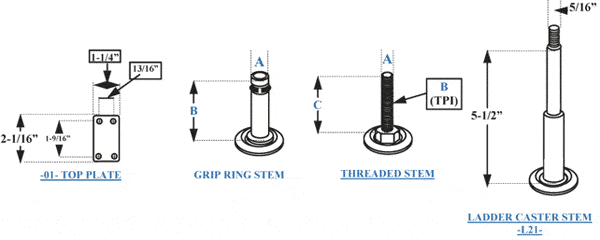

Fastener Type
Code
Size

Top Plate
01
Overall: 1-1/4 x 2-1/16
Hole Spacing: 1-3/16 x 1-9/16
Attaching Bolt Size: 3/16

Grip Ring System
11
A x B
7/16 x 1-3/16

Threaded Stem

20
21
23
24
25
A-B x C
1/2-13 x 1/2
5/16-18 x 1
3/8-16 x 1
3/8-16 x 1-1/4
3/8-16 x 1-1/2

Ladder Caster System
1.21
5/16 x 5-1/2

Overall Height (Varies by Fastener)

Fastener
For 2
For 2-1/2
For 3
01
2-5/8"
3-1/8"
3-5/8"
11
2-5/8"
3-1/8"
3-5/8"
20 Thru 25
2-3/4"
3-3/16"
3-11/16"
L21
2-1/2"
N/A
3-1/2"

Options For WC 3000 Series
(Add option abbreviation to end of the caster part #)

Integrated TLB (Avail. on 2") TLB
Old Style TLB (Avail. on 3") TLB

Special Finishes
(Factory Order)

Polished Gold Finish PGF
Black Oxide BO
Nickel N
Chrome CR
