WC 9500 Series Extreme Heavy Duty Casters

  • Single ball bearing, precision machined, hardened & heat treated, “Kingpinless style sealed raceway.” (3.43” diameter raceway with 1/2” ball bearings.)
  • Top plate and yoke assembly: AISI 1045 drop forged steel; Legs are formed from 23/64” forged steel and are double welded for strength.
  • Eliminates problems associated with kingpin failure
  • Corrosion-resistant zinc plated finish
  • 3/4” diameter axle bolt with lock nut. Zerk grease fitting in axle & raceway
  • Applications: Great for applications involving extreme shock loading, towing, moving over cracks, uneven floors, and tarmacs, heavy mobile machinery & equipment, Extra heavy-duty material handling carts, buggies & platform trucks, ground support equipment, Extra heavy-duty warehouse and manufacturing plant applications, A frames, etc.

Swivel #
Replace ** with
Fastener Code
Rigid#
Replace ** with
Fastener Code

6"
3"
 Extreme Polyurethane / Steel
 Tapered
 3500 lbs.
5-1/16"
7-3/4"
 WC9560-01-EPS-T
 WC9560R-01-EPS-T
6"
3"
 Phenolic Roller 2000 lbs.
5-1/16"
7-3/4"
 WC9560-01-PHN WC9560R-01-PHN
6"
3"
 Laminated Phenolic Roller 2500 lbs.
5-1/16"
7-3/4"
 WC9560-01-LPN WC9560R-01-LPN
6"
3"
 Polyurethane on Cast Iron Roller 2000 lbs.
5-1/16"
7-3/4"
 WC9560-01-PCI WC9560R-01-PCI
6"
3"
 Rubber on Cast Iron Roller 750 lbs.
5-1/16"
7-3/4"
 WC9560-01-RCI WC9560R-01-RCI
6"
3"
 Steel (Cast Iron) Roller 2500 lbs.
5-1/16"
7-3/4"
 WC9560-01-STL WC9560R-01-STL
6"
3"
 V-Groove (Cast Iron) Roller 2500 lbs.
5-1/16"
7-3/4"
 WC9560-01-VG WC9560R-01-VG
6"
3"
 Ductile Steel Roller 4500 lbs.
5-1/16"
7-3/4"
 WC9560-01-DUC WC9560R-01-DUC
6"
3"
 Ductile V-Groove Roller 4500 lbs.
5-1/16"
7-3/4"
 WC9560-01-DVG WC9560R-01-DVG
6"
3"
 Yoke Only - 6000 lbs.
5-1/16"
7-3/4"
 WC9560-01-Y WC9560R-01-Y

8"
3"
 Extreme Polyurethane / Steel Tapered
 4250 lbs.
6-1/4"
10-1/8"
 WC9580-01-EPS-T WC9580R-01-EPS-T
8"
3"
 Phenolic Roller 2500 lbs.
6-1/4"
10-1/8"
 WC9580-01-PHN WC9580R-01-PHN
8"
3"
 Laminated Phenolic Roller 3125 lbs.
6-1/4"
10-1/8"
 WC9580-01-LPN WC9580R-01-LPN
8"
3"
 Polyurethane on Cast Iron Roller 2500 lbs.
6-1/4"
10-1/8"
 WC9580-01-PCI WC9580R-01-PCI
8"
3"
 Rubber on Cast Iron Roller 900 lbs.
6-1/4"
10-1/8"
 WC9580-01-RCI WC9580R-01-RCI
8"
3"
 Steel (Cast Iron) Roller 2500 lbs.
6-1/4"
10-1/8"
 WC9580-01-STL WC9580R-01-STL
8"
3"
 Ductile Steel Roller 4750 lbs.
6-1/4"
10-1/8"
 WC9580-01-DUC WC9580R-01-DUC
8"
3"
 Ductile V-Groove Roller 4750 lbs.
6-1/4"
10-1/8"
 WC9580-01-DVG WC9580R-01-DVG
8"
3"
 V-Groove (Cast Iron) Roller 2800 lbs.
6-1/4"
10-1/8"
 WC9580-01-VG WC9580R-01-VG
8"
3"
 Yoke Only - 6000 lbs.
6-1/4"
10-1/8"
 WC9580-01-Y WC9580R-01-Y

10"
3"
 Extreme Polyurethane / Steel Tapered
 4625 lbs.
7-3/8"
11-3/4"
 WC9510-01-EPS-T WC9510R-01-EPS-T
10"
3"
 Phenolic Roller 2900 lbs.
7-3/8"
11-3/4"
 WC9510-01-PHN WC9510R-01-PHN
10"
3"
 Laminated Phenolic Roller 3625 lbs.
7-3/8"
11-3/4"
 WC9510-01-LPN WC9510R-01-LPN
10"
3"
 Polyurethane on Cast Iron Roller 3000 lbs.
7-3/8"
11-3/4"
 WC9510-01-PCI WC9510R-01-PCI
10"
3"
 Rubber on Cast Iron Roller 1000 lbs.
7-3/8"
11-3/4"
 WC9510-01-RCI WC9510R-01-RCI
10"
3"
 Steel (Cast Iron) Roller 2700 lbs.
7-3/8"
11-3/4"
 WC9510-01-STL WC9510R-01-STL
10"
3"
 Ductile Steel Roller 5000 lbs.
7-3/8"
11-3/4"
 WC9510-01-DUC WC9510R-01-DUC
10"
3"
 Yoke Only - 6000 lbs.
7-3/8"
11-3/4"
 WC9510-01-Y WC9510R-01-Y

12"
3"
 Extreme Polyurethane / Steel Tapered
 5000 lbs.
8-15/16"
13-3/4"
 WC9512-01-EPS-T WC9512R-01-EPS-T
12"
3"
 Phenolic Roller 3500 lbs.
8-15/16"
13-3/4"
 WC9512-01-PHN WC9512R-01-PHN
12"
3"
 Laminated Phenolic Roller 4375 lbs.
8-15/16"
13-3/4"
 WC9512-01-LPN WC9512R-01-LPN
12"
3"
 Polyurethane on Cast Iron Roller 3500 lbs.
8-15/16"
13-3/4"
 WC9512-01-PCI WC9512R-01-PCI
12"
3"
 Rubber on Cast Iron Roller 1200 lbs.
8-15/16"
13-3/4"
 WC9512-01-RCI WC9512R-01-RCI
12"
3"
 Steel (Cast Iron) Roller 2500 lbs.
8-15/16"
13-3/4"
 WC9512-01-STL WC9512R-01-STL
12"
3"
 Yoke Only - 6000 lbs.
8-15/16"
13-3/4"
 WC9512-01-Y WC9512R-01-Y


Fastener Type
Code
Size

Top Plate
01

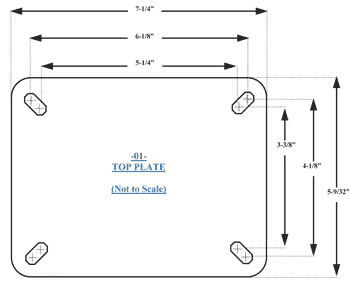

Overall Size: 5-9/32" x 7-1/4"
Bolt Hole Spacing: 3-3/8" x 5-1/4" Slotted to 4-1/8" x 6-1/8"
Attaching Bolt Size: 1/2"

Options For WC 9500 Series
(Add option abbreviation to end of the caster part #)

Integrated TLB TLB
Position Lock PSL

Special Finishes
(Factory Order)

Polished Gold Finish PGF
Black Oxide BO
Nickel N
Chrome CR
